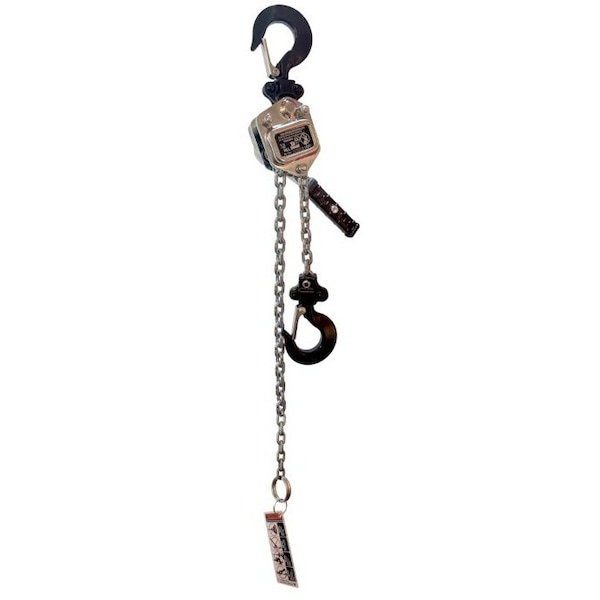

Lever Hoist (1/4 Ton) G80 Chain 5'

AllLever Chain Hoists LZ Mini-Series Base Model: LZ003 WLL Max.: 1/4 ton / 550lbs WLL Min.: 15 lbs Falls: 1 Chain: C4X12Z A" Min.: 3.6 B" 2.8 C" 2.5 D"1.2 H"min 9.4 L" 6.3 K" 1 P (lbs) Max. 56 Weight (lbs) 5ft Lift 4.4 1/4t (550lbs) Capacity. Small size allows operation and storage in tight places. Available in lifts of 5 and 10 feet. Precision hoist load chain with strength of G80 chain. Weston style mechanical load brake is self-adjusting asbestos free brake discs and is surrounded by an enclosure to limit contamination. Low Headroom, Light weight and durable formed steel enclosure protects from contamination and can be quickly disassembled for fast and easy maintenance. Sleeve bearings used to maximize serviceability and provide good efficiency Each hoist is proof tested at min. of 1.25 times the WLL and shipped with a test certificate reverencing the individualized serial number stamped in the nameplate. Meets ASME B30, OSHA, and NASA-STD-8719.9. Each hoist comes with a camouflage bag and a full Badger product line manual (1/4t to 10t). The manual is supplied in English, French, and Spanish.
