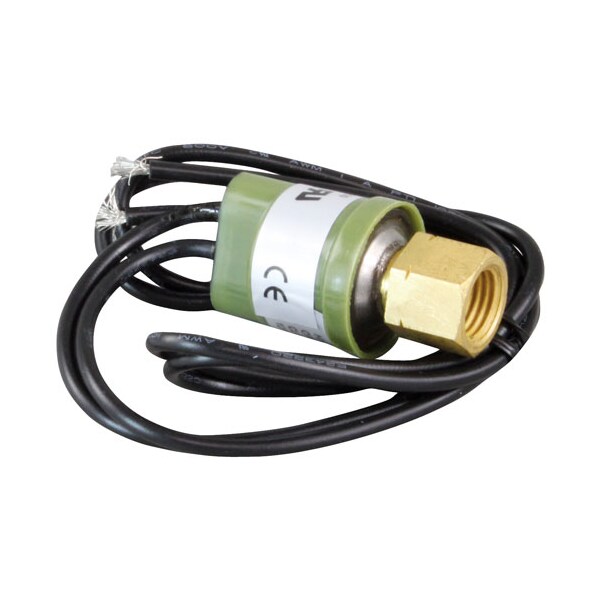

High Pressure Switch
Mfr # 421809
Zoro # G502268226
product price:
$
26.45
/ea
Key Features
Features
Automatic Reset High, Low and Condenser Fan Cycling
Width
1 in
Length
20 in
Height
1.63 in
Max. Working Pressure (PSI)
375 psi
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 421809
- Zoro #
- G502268226
- UPC #
- -
- Country of Origin
- United States
- Item
- Pressure Switch
- Features
- Automatic Reset High, Low and Condenser Fan Cycling
- Max. Working Pressure (PSI)
- 375 psi
Description
Automatic Reset High, Low & Condenser Fan Cycling Pressure;Switches.;High Pressure Open 375 Psi, Close 265 Psi, +/- 15 Psi;High Pressure Spst Open On Pressure Rise;Low Pressure Spst Open On Pressure Fall;Condenser Fan Cycling Spst Open On Pressure Fall.;1/4" Female Sae Connection;Snap Acting Ss Hermetically Sealed Sensor (Shp, Slp & Sfc);Small Size And Light Weight For Direct Mounting;Excellent Set Point Repeatability/Stability;Pressure Range: 0 To 650 Psi, Burst Pressure: 5000 Psi;Life @ Rated Load: 100,000 Cycles;Rated Voltage: 50/60 Hz., 24/120/240 V (6 Rla, 36 Lra);Temperatures: Ambient 20°F To 176°F (-30°C To 80°C);Fluid 60°F To 250°F (-50°C To 120°C)
