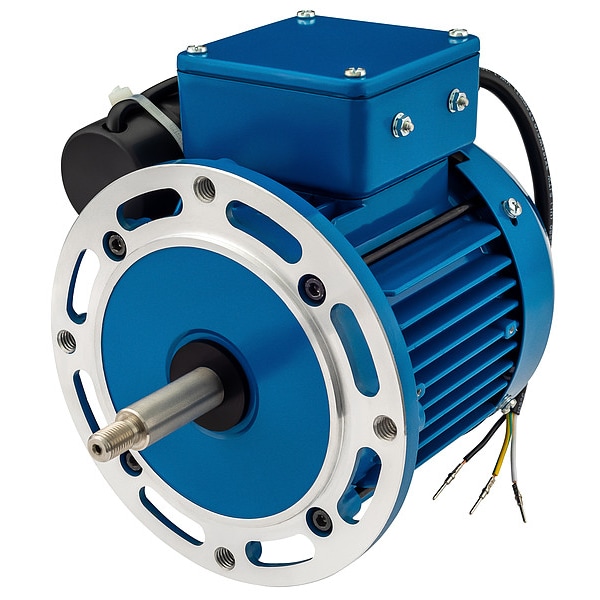

American Stainless Pumps Motor, 1 HP, 3,420 rpm, 56J, 115/230V M1.0T11G - main

Motor, 1 HP, 3,420 rpm, 56J, 115/230V

  • Mfr # M1.0T11G

  • Zoro # G800699845

product price:  $396.99
/ea
Free Shipping & Returns

Key Features

Motor Application
Pump
Max. Ambient Temp.
40 Degrees C
Phase
Single
Bolt Circle Dia.
5 7/8 in
HP
1
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
M1.0T11G
Zoro #
G800699845
UPC #
-
Country of Origin
China

Dimensions

Bolt Circle Dia.
5 7/8 in
Manufacturers Warranty Length
1 yr
Shaft Dia.
5/8 in
Length Less Shaft
6 1/2 in
Shaft Length
2 5/8 in
Height
7 3/4 in
Body Dia.
5.5 in
Overall Length
9 1/16 in
Body Diameter
5.5 in
Bolt Circle Diameter
5 7/8 in
Frame Size
56J
Shaft Diameter
5/8 in

Details

Item
Pump Motor
Motor Application
Pump
Max. Ambient Temp.
40 Degrees C
Phase
Single
HP
1
For Pump Number
60PY41, 60PY42, 60PY43, 60PY44, 60PY45
Conduit Box Position
F3
Frame
56J
Motor Shaft Design
Threaded
Motor Service Factor
1.2
Overload Relay Required
No
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Ins. Class
F
Standards
CSA C22.2 No. 100, CSA C22.2 No. 77, UL 1004-1, UL 1004-3
Nameplate RPM
3,420
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Full Load Amps
9.6/4.8 A
Motor Frame Material
Cast Aluminum
Conduit Box Location
Exterior
Motor Mounting Position
Horizontal
Motor Thermal Protection
Auto
Inverter Rated
Not Inverter Rated
Motor Bearings
Ball
Nominal Efficiency
74.1 %
Finish
Powder Coated
Hz
60 Hz
No. of Speeds
1
Motor Mounting Type
Face
Shaft Material
303 Stainless Steel
Usable @ 200V
Not Usable at 200V
Voltage
115/230V AC
Motor Sub Application
Vertical Pump
Max. SF Amps
9.3/4.8 A
Motor Shaft Rotation
CCW
Weight
17 lb
RPM Range
3,001-3,600
Regreasable Bearings
Permanently Lubricated Bearings
Part Winding Start Capable
No
Motor Design
Permanent Split Capacitor
Usable @ 208V
Not Usable at 208V
Duty Cycle
Continuous
Number of Wires
3
Bearing Protection
Water Slingers
Frame Finish
Powder-Coated
Manufacturers Warranty
1 yr
Shaft Design
Threaded
Product Type
Pump Motor
Motor Enclosure Type
Totally Enclosed Fan Cooled
Requires Overload Relay
No
Service Factor Current
9.3/4.8 A
Efficiency Rating
Standard Efficiency (IE1)
Ambient Temperature - Maximum
40 Degrees C
Frequency
60 Hz
Mounting Position
Horizontal
Nameplate Service Factor @ 60 Hz
1.2
Frame Material
Aluminum
Bearing Lubrication Type
Permanently Lubricated Bearings
Bearing Protection Type
Water Slingers
Insulation Class
F
Full Load Current @ 60 Hz
9.6/4.8 A
Application
Pump
Number of Speeds
1
Bearing Type
Ball

Description

Pump Motor, Bearing Protection Water Slingers, Body Dia. 5.5 in, Bolt Circle Dia. 5 7/8 in, Conduit Box Location Exterior, Conduit Box Position F3, Duty Cycle Continuous, Finish Powder Coated, For Pump Number 60PY41, 60PY42, 60PY43, 60PY44, 60PY45, Frame 56J, Hz 60 Hz, Full Load Amps 9.6/4.8 A, Height 7 3/4 in, HP 1, Ins. Class F, Inverter Rated Not Inverter Rated, Length Less Shaft 6 1/2 in, Manufacturers Warranty Length 1 yr, Max. Ambient Temp. 40 Degrees C, Max. SF Amps 9.3/4.8 A
