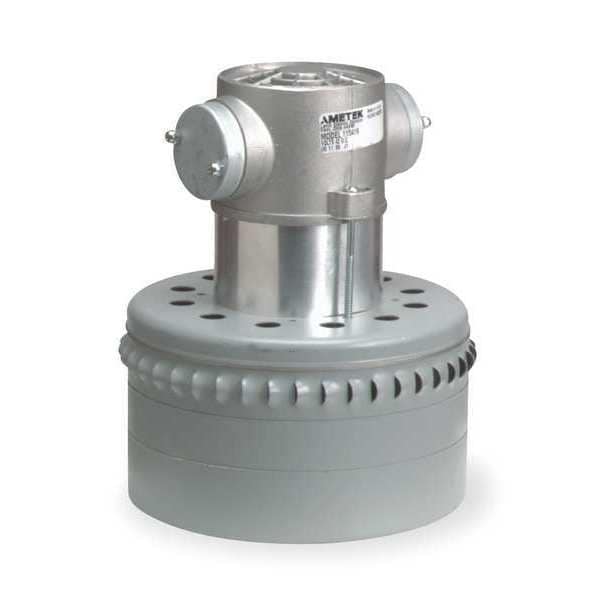

Ametek Vacuum Mtr/Blwr, Peripheral, 3 Stge, 1 Spd 114787 - main

Vacuum Mtr/Blwr, Peripheral, 3 Stge, 1 Spd

  • Mfr # 114787

  • Zoro # G2128962

product price: $531.99
/ea
Free Shipping & Returns

Key Features

Discharge
Peripheral Bypass
Body Dia.
7.5 in
Voltage
120V AC
Blower Stages
3
CFM @ 2-In. Orifice
126.4 cfm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
114787
Zoro #
G2128962
UPC #
663001183884
Country of Origin
Mexico

Dimensions

Body Dia.
7.5 in
Overall Height
9 1/2 in
Overall Length
9 1/2 in

Details

Discharge
Peripheral Bypass
Voltage
120V AC
Blower Stages
3
CFM @ 2-In. Orifice
126.4 cfm
Mounting Brackets
Metal
Motor Enclosure Design
Open Drip Proof
Motor Efficiency Group
Standard Efficient
Standards
UL Recognized (E47185)
Phase
Single
Motor Mounting Position
All Angle
Ambient Temperature
40 Degrees C
Max. Air Watts
359 W
Hz
60/50 Hz
Replacement Brushes
2UV67
Duty
Intermittent
Ins. Class
A
Motor Thermal Protection
None
Vacuum (H2O Sealed)
88.2
No. of Speeds
1
Bearings
Ball
Motor Design
Universal AC/DC
Item
Vacuum Motor
Motor/Blower Type
Bypass
Motor Mounting Type
Lug
Average Life
1,000 hr
Max. Amps
7.3 A
Motor Bearings
Ball
Duty Cycle
Intermittent
Motor Application
Universal AC/DC Motor
Vacuum Rating
88.1
Full Load Amps @ 50Hz
11.6 A
Mounting Bracket Material
Aluminum
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Full Load Amps
11.0 A
Nameplate RPM
14,620 RPM
Max. Ambient Temp.
40 Degrees C
Usable @ 208V
Not Usable at 208V

Description

Vacuum Motor, Single Phase, Motor Design Universal AC/DC, Nameplate RPM 14,620 RPM, No. of Speeds 1, 120V AC Voltage, Full Load Amps 11.0 A, Motor/Blower Type Bypass, Max. Amps 7.3 A, 60/50 Hz Hz, Motor Thermal Protection None, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Duty Cycle Intermittent, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Lug, Motor Mounting Position All Angle, Max. Air Watts 359 W, Vacuum Rating 88.1, CFM @ 2-In. Orifice 126.4 cfm
