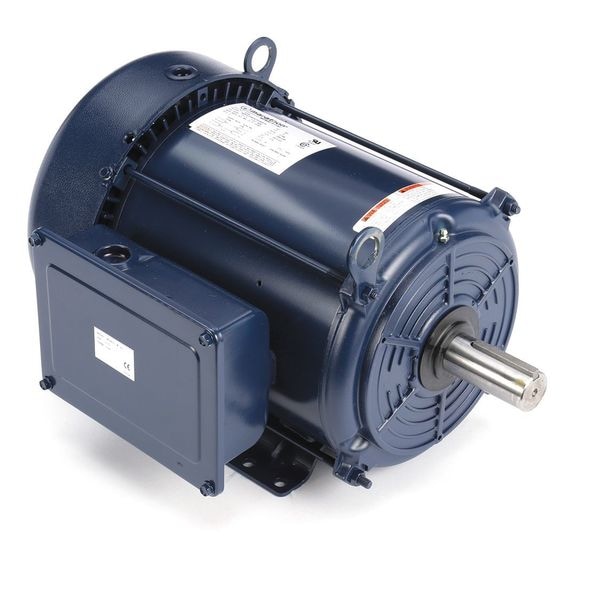

Capacitor-Start/Run General Purpose Motor, 5 hp HP, 208-230V AC Voltage, 213T Frame
Mfr # 213TBFW7026
Zoro # G5612372
product price:Â
$
1,224.99
/ea
Free Shipping & Returns
Key Features
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
5 hp
RPM Range
1,701-1,800
Voltage
208-230V AC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 213TBFW7026
- Zoro #
- G5612372
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Overall Length
- 18 3/4 in
- Length Less Shaft
- 15 1/4 in
- Shaft Length
- 3 1/2 in
- Manufacturers Warranty Length
- 1 yr
- Shaft Dia.
- 1 3/8 in
- Shaft Diameter
- 1 3/8 in
- Frame Size
- 213T
- Wire Rope Length
- 18 3/4 in
- Length
- 18 3/4 in
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 5 hp HP, Nameplate RPM 1,749 RPM, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 24.5-22.0 A, 213T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, NEMA Design L, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
