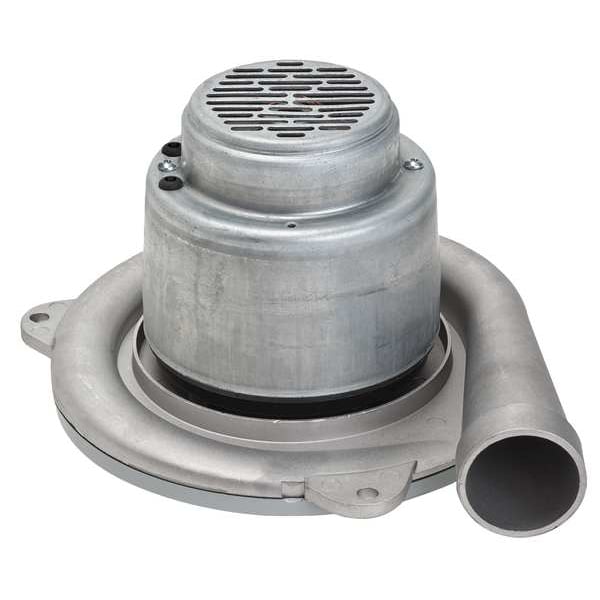

Ametek Vacuum Mtr/Blwr, Tangential, 1 Stge, 1 Spd 122172-18 - main

Vacuum Mtr/Blwr, Tangential, 1 Stge, 1 Spd

  • Mfr # 122172-18

  • Zoro # G3557741

product price:  $181.99
/ea
Free Shipping & Returns

Key Features

Discharge
Tangential Bypass
Body Dia.
8.4 in
Voltage
240V AC
Blower Stages
1
CFM @ 2-In. Orifice
166 cfm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
122172-18
Zoro #
G3557741
UPC #
094714797028
Country of Origin
Mexico

Dimensions

Body Dia.
8.4 in
Overall Height
6 in

Details

Discharge
Tangential Bypass
Voltage
240V AC
Blower Stages
1
CFM @ 2-In. Orifice
166 cfm
Mounting Brackets
Aluminum
Motor Enclosure Design
Open
Nominal Efficiency
45 %
Ambient Temperature
40 Degrees C
Vacuum (H2O Sealed)
110.0
Motor Mounting Position
All Angle
Max. Amps
7.8 A
Bearings
Ball
Average Life
1,500 hr
Hz
60 Hz
Max. Air Watts
717 W
Phase
Single
No. of Speeds
1
Item
Vacuum Motor
Motor Mounting Type
Lug
Motor/Blower Type
Bypass
Motor Thermal Protection
Manual
Ins. Class
A
Duty
Intermittent
Standards
UL Recognized (E47185)
Motor Design
Universal AC/DC
Replacement Brushes
Mfr. No. 50-5960
Duty Cycle
Intermittent
Full Load Amps
7.8 A
Vacuum Rating
115.3
Motor Bearings
Ball
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Bearing Protection
Yes
Motor Application
Universal AC/DC Motor
Max. Ambient Temp.
40 Degrees C
Mounting Bracket Material
Aluminum
Compatible Manufacturer Model Number
50-5960
Usable @ 208V
Not Usable at 208V

Description

Vacuum Motor, Single Phase, Motor Design Universal AC/DC, No. of Speeds 1, 240V AC Voltage, Full Load Amps 7.8 A, Motor/Blower Type Bypass, Max. Amps 7.8 A, 60 Hz Hz, Motor Thermal Protection Manual, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Duty Cycle Intermittent, Motor Enclosure Design Open, Motor Mounting Type Lug, Motor Mounting Position All Angle, Max. Air Watts 717 W, Vacuum Rating 115.3, CFM @ 2-In. Orifice 166 cfm, Mounting Bracket Material Aluminum, Motor Bearings Ball
