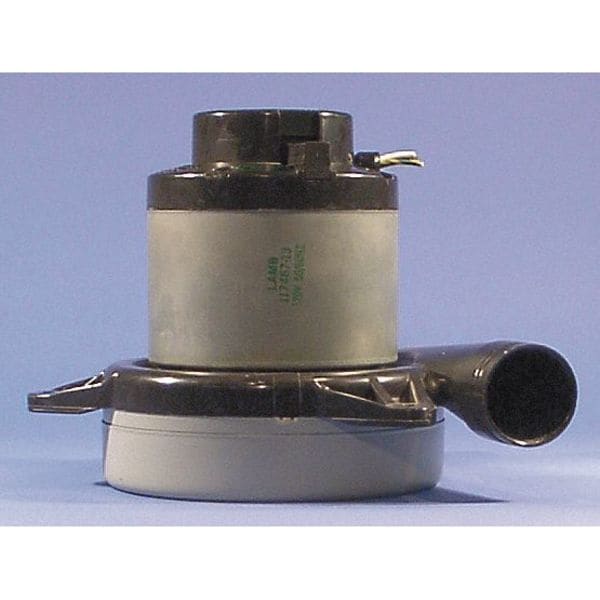

Ametek Vacuum Mtr/Blwr, Tangential, 2 Stge, 1 Spd 117488-13 - main

Vacuum Mtr/Blwr, Tangential, 2 Stge, 1 Spd

  • Mfr # 117488-13

  • Zoro # G3321796

product price: $278.99
/ea
Free Shipping & Returns

Key Features

Discharge
Tangential Bypass
Body Dia.
7.2 in
Voltage
120V AC
Blower Stages
2
CFM @ 2-In. Orifice
107 cfm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
117488-13
Zoro #
G3321796
UPC #
-
Country of Origin
Mexico

Dimensions

Body Dia.
7.2 in
Overall Height
7 3/8 in
Overall Length
7 3/8 in
Inlet Tube Dia.
2 in

Details

Discharge
Tangential Bypass
Voltage
120V AC
Blower Stages
2
CFM @ 2-In. Orifice
107 cfm
Mounting Brackets
Thermoset
Motor Enclosure Design
Open
Motor Mounting Position
All Angle
Ambient Temperature
40 Degrees C
Item
Vacuum Motor
Bearings
Ball
Max. Amps
11.8 A
Average Life
700 hr
Ins. Class
A
Motor/Blower Type
Bypass
Motor Mounting Type
Lug
Motor Design
Universal AC/DC
Phase
Single
No. of Speeds
1
Motor Efficiency Group
Standard Efficient
Vacuum (H2O Sealed)
123.0
Motor Thermal Protection
None
Duty
Intermittent
Max. Air Watts
396 W
Standards
CSA Certified (LR31393), UL Recognized (E47185)
Replacement Brushes
Mfr. No. 33410-2
Hz
60/50 Hz
Bearing Protection
Air Sealed
Full Load Amps
11.7 A
Max. Ambient Temp.
40 Degrees C
Voltage @ 50Hz
120V AC
Full Load Amps @ 50Hz
12.8 A
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Nameplate RPM
23,613 RPM
Vacuum Rating
112.8
Motor Application
Universal AC/DC Motor
Motor Bearings
Ball
Duty Cycle
Intermittent
Mounting Bracket Material
Thermoset
Compatible Manufacturer Model Number
33410-2
Usable @ 208V
Not Usable at 208V

Description

Vacuum Motor, Single Phase, Motor Design Universal AC/DC, Nameplate RPM 23,613 RPM, No. of Speeds 1, 120V AC Voltage, Full Load Amps 11.7 A, Motor/Blower Type Bypass, Max. Amps 11.8 A, 60/50 Hz Hz, Motor Thermal Protection None, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Duty Cycle Intermittent, Motor Enclosure Design Open, Motor Mounting Type Lug, Motor Mounting Position All Angle, Max. Air Watts 396 W, Vacuum Rating 112.8, CFM @ 2-In. Orifice 107 cfm, Mounting Bracket Material Thermoset
