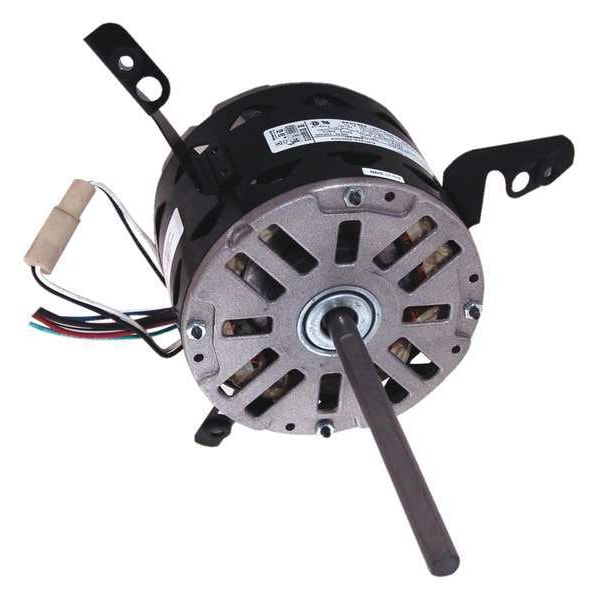

Motor, PSC, 1/3 HP, 1075 RPM, 115V, 48Y, OAO

  • Mfr # 753A
  • Zoro # G2722693
product price:
$
218.99
/ea
Free Shipping & Returns

Key Features

Phase
Single
Frame
48
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Sub Application
Room Air Conditioner
Shaft Length
5 1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
753A
Zoro #
G2722693
UPC #
-
Country of Origin
India

Dimensions

Shaft Length
5 1/2 in
Body Dia.
5 5/8 in
Length Less Shaft
4 7/8 in
Overall Length
10 3/8 in
Shaft Dia.
1/2 in
Lead Length
25 in
Shaft Diameter
1/2 in
Body Diameter
5.6 in
Frame Size
48
Wire Rope Length
10 3/8 in
Length
10 3/8 in

Details

Phase
Single
Frame
48
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Sub Application
Room Air Conditioner
Item
Room Air Conditioner Motor
Application
Room Air Conditioner
Motor Shaft Rotation
CW/CCW
Duty
Continuous
Motor Bearings
Ball
Motor Shaft Design
Flat
Max. Ambient Temp.
40 Degrees C
Hz
60 Hz
Standards
CSA Certified, UL Recognized
Nameplate RPM
1,075
Motor Service Factor
1
Motor Design
Permanent Split Capacitor
Motor Mounting Type
T-Flex
Voltage
115V AC
Motor Application
HVAC/R
Motor Enclosure Design
Open Air-Over
Capacitor Required
Capacitor Not Included
HP
1/3
Motor Mounting Position
Horizontal
Ins. Class
B
No. of Speeds
4
RPM Range
1,001-1,100
Motor Thermal Protection
Auto
Includes
Reversing Plug
Full Load Amps
5.06 A
Usable @ 208V
Not Usable at 208V
Motor Frame Material
Steel
Usable @ 200V
Not Usable at 200V
Stud Quantity
4
Number of Shafts
1
Weight
17 lb
Mounting Holes
4
Number of Speeds
4
Mounting
Torsion Flex Bracket
Wattage
250 W
Full Load Current @ 60 Hz
5.06 A
Bearing Type
Ball
Sub Application
General Purpose
Nameplate Service Factor @ 60 Hz
1
Product Type
Room Air Conditioner Motor
Insulation Class
B
Drive Type
Direct Drive
Frequency
60 Hz
Shaft Design
Flat
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Open Air Over
Frame Material
Steel

Description

Room Air Conditioner Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 4, Voltage 115V AC, 5.06 A Full Load Amps, 48 Frame, Output Watts 250 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type T-Flex
