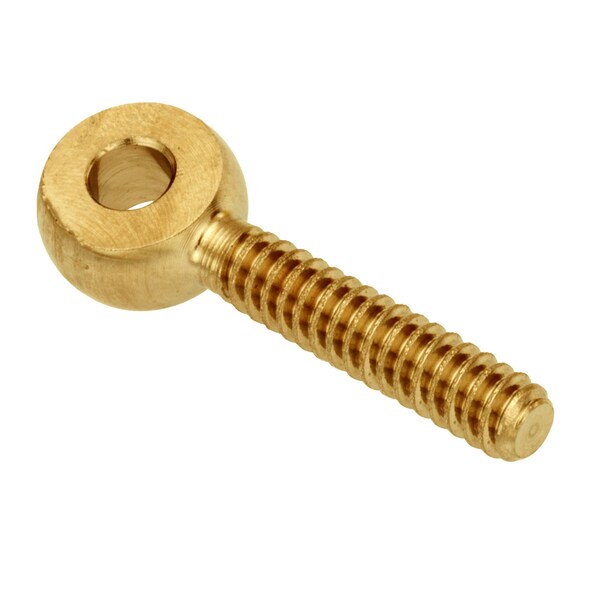

Fixed Rod End, Brass, Plain, 14 mm OD
Mfr # ZEBM6X50-BR
Zoro # G910724345
product price: $33.49
/eaKey Features
Type
Fixed Rod End
Thread Size
M6-1.00
Head Width
7 mm
Shank Thread Length
36 mm
Overall Length
57 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
ZEBM6X50-BR
Zoro #
G910724345
UPC #
-
Country of Origin
United States
Dimensions
Thread Size
M6-1.00
Head Width
7 mm
Shank Thread Length
36 mm
Overall Length
57 mm
Shank Thread Size
M6-1.0
Ball Diameter
6 mm
Head Outside Diameter
14 mm
Bore Diameter
6 mm
Eye Outside Diameter
14 mm
Thread Length
36 mm
Eye Inside Diameter
6 mm
Screw Size
6 mm
Shank Diameter
6 mm
Shank Length
43 mm
Hole Center-to-End Length
50 mm
Eye Thickness
7 mm
Description
Fixed Rod End, Eye Inside Diameter 6 mm, Eye Outside Diameter 14 mm, Eye Thickness 7 mm, Plain, Brass, REACH Compliant Yes, Hole Center-to-End Length 50 mm, RoHS Compliant Yes, Shank Diameter 6 mm, Thread Style Fully Threaded, Metric Coarse, Thread Direction Right Hand, Thread Length 36 mm, Thread Pitch 1 mm, Thread Size M6-1.00, Shank Length 43 mm, Externally Threaded, Shoulder Style Without Shoulder, System of Measurement Metric, Fixed Rod End, Overall Length 57 mm, Screw Size 6 mm
