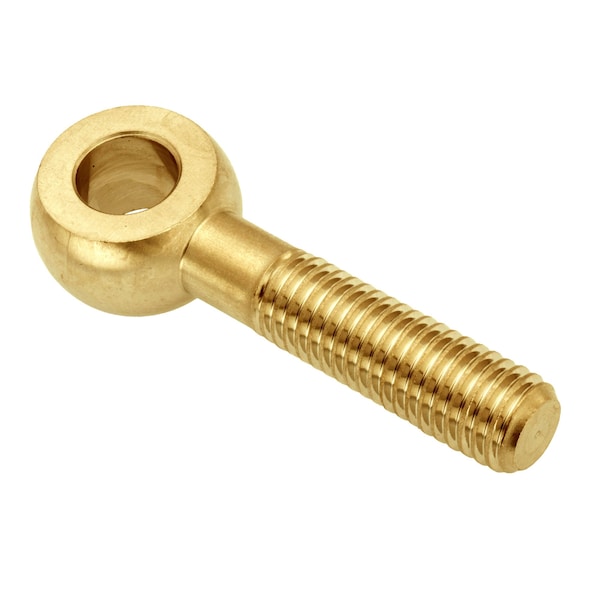

Fixed Rod End, Brass, Plain, 45 mm OD
Mfr # ZEBM24X90-BR
Zoro # G210724304
product price:Â
$
574.99
/ea
Free Shipping & Returns
Key Features
Type
Fixed Rod End
Thread Size
M24x3.00
Shank Thread Length
58 mm
Overall Length
112.5 mm
Head Outside Diameter
45 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ZEBM24X90-BR
- Zoro #
- G210724304
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Thread Size
- M24x3.00
- Shank Thread Length
- 58 mm
- Overall Length
- 112.5 mm
- Head Outside Diameter
- 45 mm
- Ball Diameter
- 22 mm
- Head Width
- 25 mm
- Shank Thread Size
- M24-3.0
- Bore Diameter
- 10 mm
- Eye Outside Diameter
- 45 mm
- Shank Diameter
- 24 mm
- Shank Length
- 67 1/2 mm
- Screw Size
- 24 mm
- Thread Length
- 58 mm
- Eye Thickness
- 25 mm
- Hole Center-to-End Length
- 90 mm
- Eye Inside Diameter
- 10 mm
- Wire Rope Length
- 112.5 mm
- Minimum Thread Length
- 58 mm
- Length
- 112.5 mm
Description
Fixed Rod End, Eye Inside Diameter 10 mm, Eye Outside Diameter 45 mm, Eye Thickness 25 mm, Plain, Brass, REACH Compliant Yes, Hole Center-to-End Length 90 mm, RoHS Compliant Yes, Shank Diameter 24 mm, Thread Style Fully Threaded, Metric Coarse, Thread Direction Right Hand, Thread Length 58 mm, Thread Pitch 3 mm, Thread Size M24x3.00, Shank Length 67 1/2 mm, Externally Threaded, Shoulder Style Without Shoulder, System of Measurement Metric, Fixed Rod End, Overall Length 112.5 mm, Screw Size 24 mm
