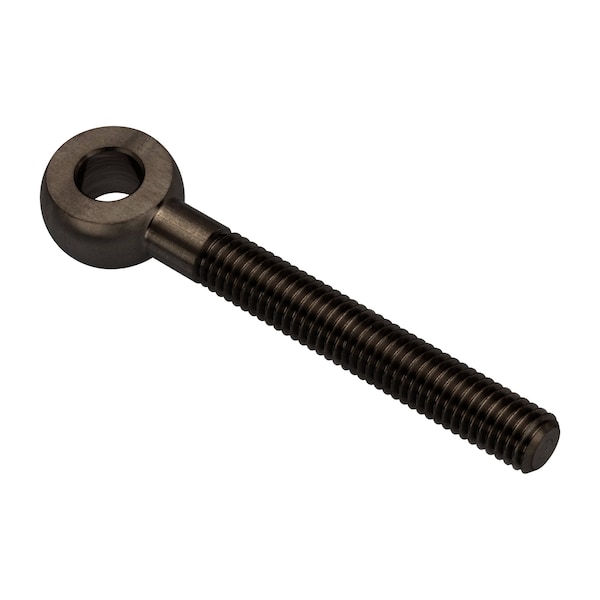

Fixed Rod End, SS, Black Oxide
Mfr # ZEBM8X100-BLACK
Zoro # G510723984
product price: $23.49
/eaKey Features
Type
Fixed Rod End
Thread Size
M8-1.25
Rod End Type
Spherical Rod End
System of Measurement
Metric
Head Outside Diameter
18 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
ZEBM8X100-BLACK
Zoro #
G510723984
UPC #
-
Country of Origin
United States
Dimensions
Thread Size
M8-1.25
Head Outside Diameter
18 mm
Ball Diameter
8 mm
Shank Thread Size
M8-1.25
Head Width
9 mm
Shank Thread Length
84 mm
Overall Length
109 mm
Bore Diameter
8 mm
Eye Thickness
9 mm
Screw Size
8 mm
Shank Diameter
8 mm
Eye Inside Diameter
8 mm
Hole Center-to-End Length
100 mm
Eye Outside Diameter
18 mm
Thread Length
84 mm
Shank Length
91 mm
Description
Fixed Rod End, Eye Inside Diameter 8 mm, Eye Outside Diameter 18 mm, Eye Thickness 9 mm, Black Oxide, Stainless Steel, Material Grade/Class 304, Material Quality Standards ASTM A582, REACH Compliant Yes, Hole Center-to-End Length 100 mm, RoHS Compliant Yes, Shank Diameter 8 mm, Thread Style Fully Threaded, Metric Coarse, Thread Direction Right Hand, Thread Length 84 mm, Thread Pitch 1.25 mm, Thread Size M8-1.25, Shank Length 91 mm, Externally Threaded, Shoulder Style Without Shoulder
