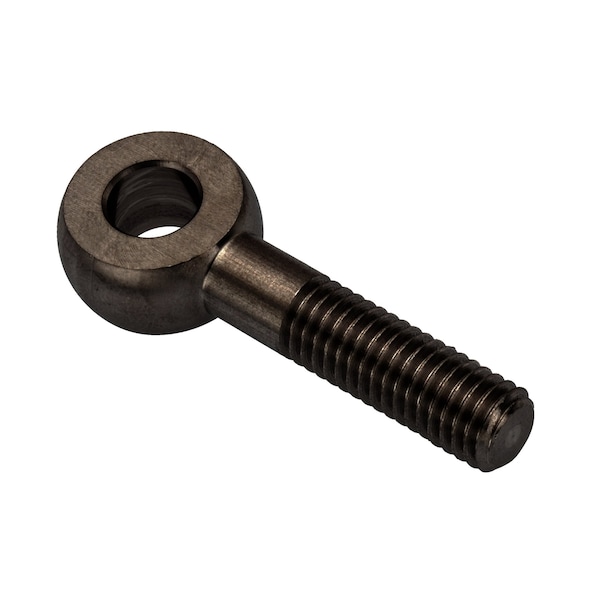

Fixed Rod End, SS, Black Oxide
Mfr # ZEBM8X30-BLACK
Zoro # G010724276
product price:Â
$
12.29
/ea
Key Features
Type
Fixed Rod End
Thread Size
M8x1.25
System of Measurement
Metric
Resistance Properties
Chemical-Resistant, Corrosion-Resistant
Rod End Type
Spherical Rod End
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ZEBM8X30-BLACK
- Zoro #
- G010724276
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Thread Size
- M8x1.25
- Shank Thread Size
- M8-1.25
- Head Outside Diameter
- 18 mm
- Head Width
- 9 mm
- Shank Thread Length
- 22 mm
- Ball Diameter
- 8 mm
- Overall Length
- 39 mm
- Bore Diameter
- 8 mm
- Eye Thickness
- 9 mm
- Eye Inside Diameter
- 8 mm
- Eye Outside Diameter
- 18 mm
- Screw Size
- 8 mm
- Thread Length
- 22 mm
- Shank Diameter
- 8 mm
- Hole Center-to-End Length
- 30 mm
- Shank Length
- 22 mm
- Wire Rope Length
- 39 mm
- Minimum Thread Length
- 22 mm
- Length
- 39 mm
Description
Fixed Rod End, Eye Inside Diameter 8 mm, Eye Outside Diameter 18 mm, Eye Thickness 9 mm, Black Oxide, Stainless Steel, Material Grade/Class 304, Material Quality Standards ASTM A582, REACH Compliant Yes, Hole Center-to-End Length 30 mm, RoHS Compliant Yes, Shank Diameter 8 mm, Thread Style Fully Threaded, Metric Coarse, Thread Direction Right Hand, Thread Length 22 mm, Thread Pitch 1.25 mm, Thread Size M8x1.25, Shank Length 22 mm, Externally Threaded, Shoulder Style Without Shoulder
