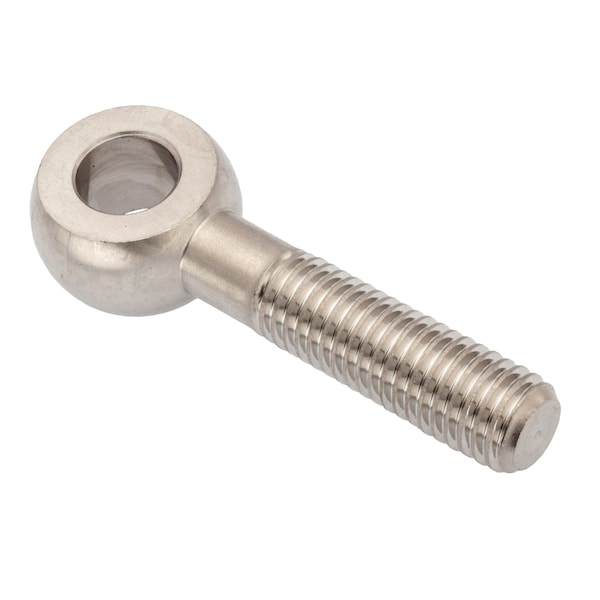

Fixed Rod End, Stainless Steel, Plain
Mfr # ZEBM24X90-316
Zoro # G010724368
product price: $301.99
/ea
Free Shipping & Returns
Key Features
Type
Fixed Rod End
Thread Size
M24-3.00
For Environment
Food and Beverage
System of Measurement
Metric
Head Width
25 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
ZEBM24X90-316
Zoro #
G010724368
UPC #
-
Country of Origin
United States
Dimensions
Thread Size
M24-3.00
Head Width
25 mm
Overall Length
112.5 mm
Head Outside Diameter
45 mm
Shank Thread Length
58 mm
Shank Thread Size
M24-3.0
Ball Diameter
22 mm
Bore Diameter
10 mm
Eye Outside Diameter
45 mm
Shank Length
67 1/2 mm
Eye Thickness
25 mm
Thread Length
58 mm
Eye Inside Diameter
10 mm
Screw Size
24 mm
Hole Center-to-End Length
90 mm
Shank Diameter
24 mm
Description
Fixed Rod End, Eye Inside Diameter 10 mm, Eye Outside Diameter 45 mm, Eye Thickness 25 mm, Plain, Stainless Steel, Material Grade/Class 316, Material Quality Standards ASTM A276, REACH Compliant Yes, Hole Center-to-End Length 90 mm, RoHS Compliant Yes, Shank Diameter 24 mm, Thread Style Fully Threaded, Metric Coarse, Thread Direction Right Hand, Thread Length 58 mm, Thread Pitch 3 mm, Thread Size M24-3.00, Shank Length 67 1/2 mm, Externally Threaded, Shoulder Style Without Shoulder
