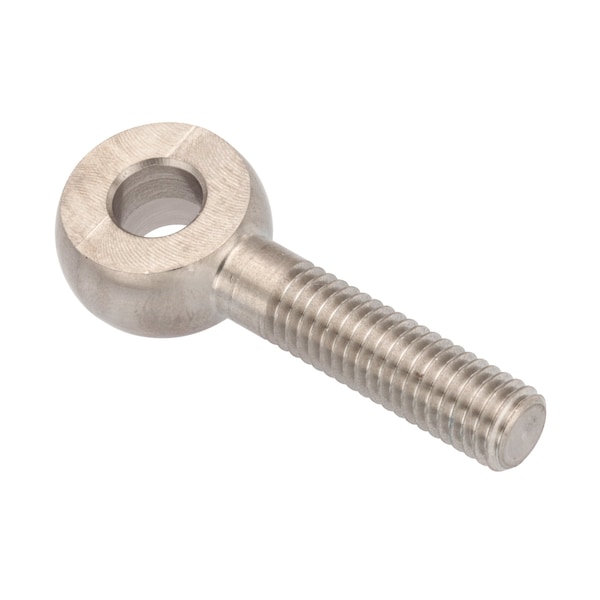

Fixed Rod End, Stainless Steel, Plain
Mfr # ZEBM5X25-LH
Zoro # G810724124
product price:Â
$
10.19
/ea
Key Features
Type
Fixed Rod End
Thread Size
M5x0.80
Shank Thread Direction
Left Hand
Standards
DFARS, RoHS Compliant
Rod End Type
Spherical Rod End
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ZEBM5X25-LH
- Zoro #
- G810724124
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Thread Size
- M5x0.80
- Head Width
- 6 mm
- Overall Length
- 31 mm
- Ball Diameter
- 5 mm
- Shank Thread Length
- 16 mm
- Shank Thread Size
- M5-0.8
- Head Outside Diameter
- 12 mm
- Bore Diameter
- 5 mm
- Shank Length
- 19 mm
- Eye Thickness
- 6 mm
- Eye Inside Diameter
- 5 mm
- Shank Diameter
- 5 mm
- Eye Outside Diameter
- 12 mm
- Hole Center-to-End Length
- 25 mm
- Screw Size
- 5 mm
- Thread Length
- 16 mm
- Wire Rope Length
- 31 mm
- Minimum Thread Length
- 16 mm
- Length
- 31 mm
Description
Fixed Rod End, Eye Inside Diameter 5 mm, Eye Outside Diameter 12 mm, Eye Thickness 6 mm, Plain, Stainless Steel, Material Grade/Class 304, Material Quality Standards ASTM A582, REACH Compliant Yes, Hole Center-to-End Length 25 mm, RoHS Compliant Yes, Shank Diameter 5 mm, Thread Style Fully Threaded, Metric Coarse, Thread Direction Left Hand, Thread Length 16 mm, Thread Pitch 0.8 mm, Thread Size M5x0.80, Shank Length 19 mm, Externally Threaded, Shoulder Style Without Shoulder
