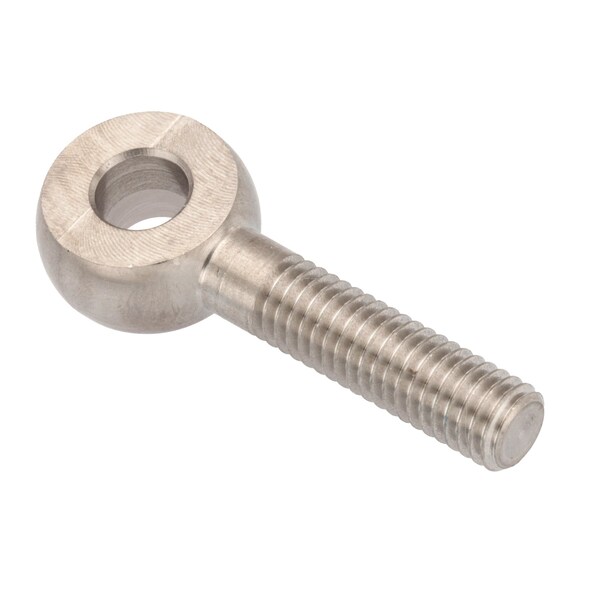

Fixed Rod End, Stainless Steel, Plain
Mfr # ZEBM5X30-174
Zoro # G910723973
product price:Â
$
13.99
/ea
Key Features
Type
Fixed Rod End
Thread Size
M5x0.80
Resistance Properties
Chemical-Resistant, Corrosion-Resistant
Head Outside Diameter
12 mm
Overall Length
36 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ZEBM5X30-174
- Zoro #
- G910723973
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Thread Size
- M5x0.80
- Head Outside Diameter
- 12 mm
- Overall Length
- 36 mm
- Shank Thread Length
- 16 mm
- Ball Diameter
- 5 mm
- Head Width
- 6 mm
- Shank Thread Size
- M5-0.8
- Bore Diameter
- 5 mm
- Shank Diameter
- 5 mm
- Shank Length
- 24 mm
- Screw Size
- 5 mm
- Eye Outside Diameter
- 12 mm
- Hole Center-to-End Length
- 30 mm
- Thread Length
- 16 mm
- Eye Inside Diameter
- 5 mm
- Eye Thickness
- 6 mm
- Wire Rope Length
- 36 mm
- Minimum Thread Length
- 16 mm
- Length
- 36 mm
Description
Fixed Rod End, Eye Inside Diameter 5 mm, Eye Outside Diameter 12 mm, Eye Thickness 6 mm, Plain, Stainless Steel, Material Grade/Class 17-4, Material Quality Standards ASTM A693, REACH Compliant Yes, Hole Center-to-End Length 30 mm, RoHS Compliant Yes, Shank Diameter 5 mm, Thread Style Fully Threaded, Metric Coarse, Thread Direction Right Hand, Thread Length 16 mm, Thread Pitch 0.8 mm, Thread Size M5x0.80, Shank Length 24 mm, Externally Threaded, Shoulder Style Without Shoulder
