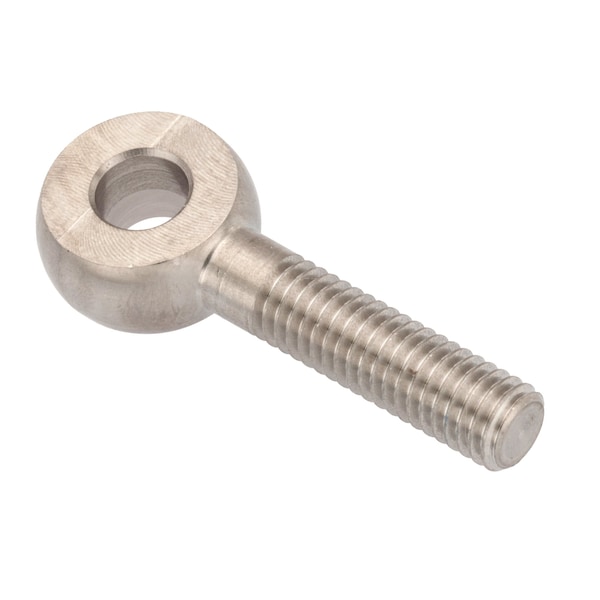

Fixed Rod End, Stainless Steel, Plain
Mfr # ZEBM5X30-316
Zoro # G810723950
product price: $10.49
/eaKey Features
Type
Fixed Rod End
Thread Size
M5-0.8
Head Outside Diameter
12 mm
Shank Thread Size
M5-0.8
Rod End Type
Spherical Rod End
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
ZEBM5X30-316
Zoro #
G810723950
UPC #
-
Country of Origin
United States
Dimensions
Thread Size
M5-0.8
Head Outside Diameter
12 mm
Shank Thread Size
M5-0.8
Shank Thread Length
16 mm
Ball Diameter
5 mm
Head Width
6 mm
Overall Length
36 mm
Bore Diameter
5 mm
Shank Diameter
5 mm
Shank Length
24 mm
Eye Inside Diameter
5 mm
Eye Thickness
6 mm
Hole Center-to-End Length
30 mm
Eye Outside Diameter
12 mm
Screw Size
5 mm
Thread Length
16 mm
Description
Fixed Rod End, Eye Inside Diameter 5 mm, Eye Outside Diameter 12 mm, Eye Thickness 6 mm, Plain, Stainless Steel, Material Grade/Class 316, Material Quality Standards ASTM A276, REACH Compliant Yes, Hole Center-to-End Length 30 mm, RoHS Compliant Yes, Shank Diameter 5 mm, Thread Style Fully Threaded, Metric Coarse, Thread Direction Right Hand, Thread Length 16 mm, Thread Pitch 0.8 mm, Thread Size M5-0.8, Shank Length 24 mm, Externally Threaded, Shoulder Style Without Shoulder
