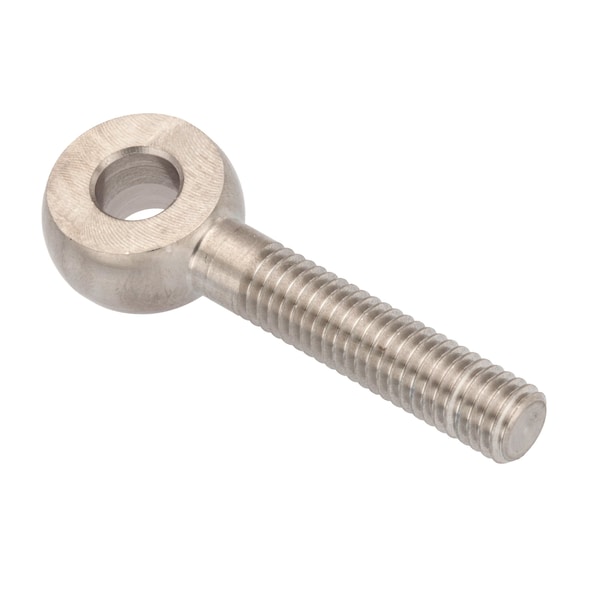

Fixed Rod End, Stainless Steel, Plain
Mfr # ZEBM5X40-174
Zoro # G510723885
product price:Â
$
16.19
/ea
Key Features
Type
Fixed Rod End
Thread Size
M5x0.80
Housing Material
Stainless Steel
Shank Thread Size
M5-0.8
Head Width
6 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ZEBM5X40-174
- Zoro #
- G510723885
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Thread Size
- M5x0.80
- Shank Thread Size
- M5-0.8
- Head Width
- 6 mm
- Ball Diameter
- 5 mm
- Head Outside Diameter
- 12 mm
- Shank Thread Length
- 26 mm
- Overall Length
- 46 mm
- Bore Diameter
- 5 mm
- Screw Size
- 5 mm
- Eye Inside Diameter
- 5 mm
- Eye Outside Diameter
- 12 mm
- Shank Length
- 34 mm
- Eye Thickness
- 6 mm
- Hole Center-to-End Length
- 40 mm
- Thread Length
- 26 mm
- Shank Diameter
- 5 mm
- Wire Rope Length
- 46 mm
- Minimum Thread Length
- 26 mm
- Length
- 46 mm
Description
Fixed Rod End, Eye Inside Diameter 5 mm, Eye Outside Diameter 12 mm, Eye Thickness 6 mm, Plain, Stainless Steel, Material Grade/Class 17-4, Material Quality Standards ASTM A693, REACH Compliant Yes, Hole Center-to-End Length 40 mm, RoHS Compliant Yes, Shank Diameter 5 mm, Thread Style Fully Threaded, Metric Coarse, Thread Direction Right Hand, Thread Length 26 mm, Thread Pitch 0.8 mm, Thread Size M5x0.80, Shank Length 34 mm, Externally Threaded, Shoulder Style Without Shoulder
