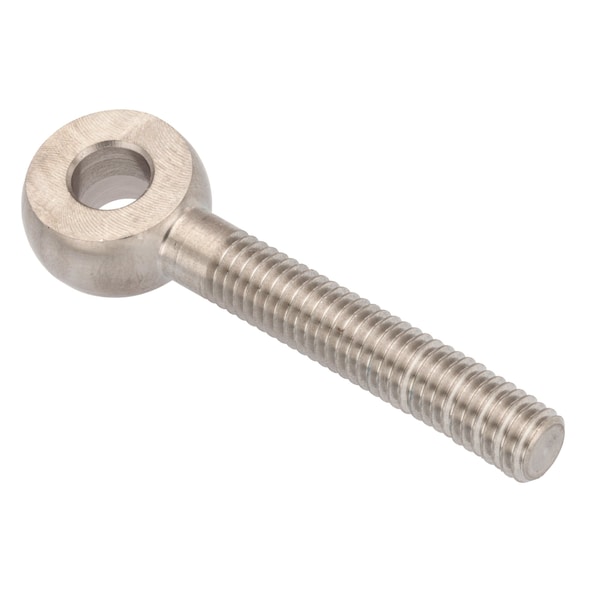

Fixed Rod End, Stainless Steel, Plain
Mfr # ZEBM5X60-LH
Zoro # G410723978
product price:Â
$
15.79
/ea
Key Features
Type
Fixed Rod End
Thread Size
M5x0.80
Resistance Properties
Chemical-Resistant, Corrosion-Resistant
Head Outside Diameter
12 mm
System of Measurement
Metric
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ZEBM5X60-LH
- Zoro #
- G410723978
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Thread Size
- M5x0.80
- Head Outside Diameter
- 12 mm
- Shank Thread Size
- M5-0.8
- Ball Diameter
- 5 mm
- Shank Thread Length
- 46 mm
- Head Width
- 6 mm
- Overall Length
- 66 mm
- Bore Diameter
- 5 mm
- Screw Size
- 5 mm
- Eye Thickness
- 6 mm
- Shank Length
- 54 mm
- Hole Center-to-End Length
- 60 mm
- Shank Diameter
- 5 mm
- Thread Length
- 46 mm
- Eye Inside Diameter
- 5 mm
- Eye Outside Diameter
- 12 mm
- Wire Rope Length
- 66 mm
- Minimum Thread Length
- 46 mm
- Length
- 66 mm
Description
Fixed Rod End, Eye Inside Diameter 5 mm, Eye Outside Diameter 12 mm, Eye Thickness 6 mm, Plain, Stainless Steel, Material Grade/Class 304, Material Quality Standards ASTM A582, REACH Compliant Yes, Hole Center-to-End Length 60 mm, RoHS Compliant Yes, Shank Diameter 5 mm, Thread Style Fully Threaded, Metric Coarse, Thread Direction Left Hand, Thread Length 46 mm, Thread Pitch 0.8 mm, Thread Size M5x0.80, Shank Length 54 mm, Externally Threaded, Shoulder Style Without Shoulder
