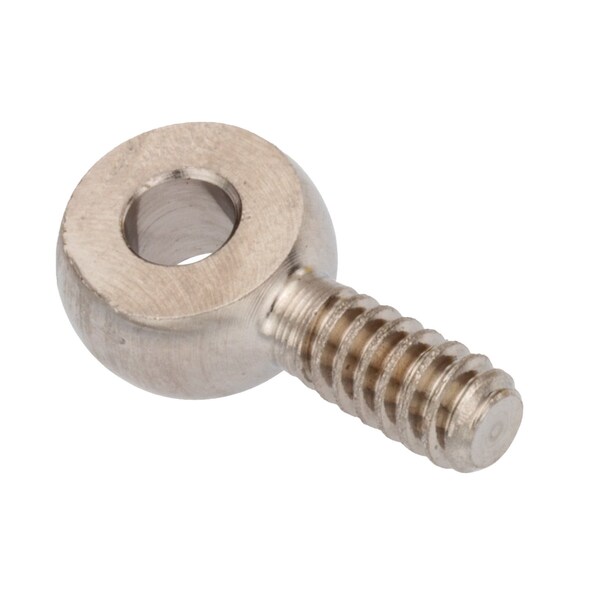

Fixed Rod End, Stainless Steel, Plain
Mfr # ZEBM6X30-LH
Zoro # G110724145
product price: $12.59
/eaKey Features
Type
Fixed Rod End
Thread Size
M6-1.00
Housing Material
Stainless Steel
System of Measurement
Metric
Ball Diameter
6 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
ZEBM6X30-LH
Zoro #
G110724145
UPC #
-
Country of Origin
United States
Dimensions
Thread Size
M6-1.00
Ball Diameter
6 mm
Overall Length
37 mm
Shank Thread Length
18 mm
Shank Thread Size
M6-1.0
Head Width
7 mm
Head Outside Diameter
14 mm
Bore Diameter
6 mm
Shank Length
23 mm
Eye Outside Diameter
14 mm
Shank Diameter
6 mm
Hole Center-to-End Length
30 mm
Thread Length
18 mm
Screw Size
6 mm
Eye Inside Diameter
6 mm
Eye Thickness
7 mm
Description
Fixed Rod End, Eye Inside Diameter 6 mm, Eye Outside Diameter 14 mm, Eye Thickness 7 mm, Plain, Stainless Steel, Material Grade/Class 304, Material Quality Standards ASTM A582, REACH Compliant Yes, Hole Center-to-End Length 30 mm, RoHS Compliant Yes, Shank Diameter 6 mm, Thread Style Fully Threaded, Metric Coarse, Thread Direction Left Hand, Thread Length 18 mm, Thread Pitch 1 mm, Thread Size M6-1.00, Shank Length 23 mm, Externally Threaded, Shoulder Style Without Shoulder
