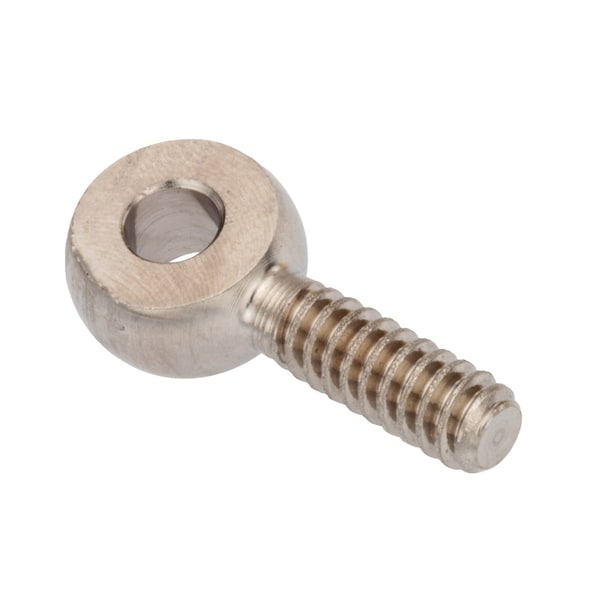

Fixed Rod End, Stainless Steel, Plain
Mfr # ZEBM6X35-174
Zoro # G210724052
product price: $16.59
/eaKey Features
Type
Fixed Rod End
Thread Size
M6-1.00
System of Measurement
Metric
Head Width
7 mm
Shank Thread Length
22 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
ZEBM6X35-174
Zoro #
G210724052
UPC #
-
Country of Origin
United States
Dimensions
Thread Size
M6-1.00
Head Width
7 mm
Shank Thread Length
22 mm
Ball Diameter
6 mm
Overall Length
42 mm
Head Outside Diameter
14 mm
Shank Thread Size
M6-1.0
Bore Diameter
6 mm
Thread Length
22 mm
Shank Length
28 mm
Eye Inside Diameter
6 mm
Screw Size
6 mm
Eye Outside Diameter
14 mm
Hole Center-to-End Length
35 mm
Eye Thickness
7 mm
Shank Diameter
6 mm
Description
Fixed Rod End, Eye Inside Diameter 6 mm, Eye Outside Diameter 14 mm, Eye Thickness 7 mm, Plain, Stainless Steel, Material Grade/Class 17-4, Material Quality Standards ASTM A693, REACH Compliant Yes, Hole Center-to-End Length 35 mm, RoHS Compliant Yes, Shank Diameter 6 mm, Thread Style Fully Threaded, Metric Coarse, Thread Direction Right Hand, Thread Length 22 mm, Thread Pitch 1 mm, Thread Size M6-1.00, Shank Length 28 mm, Externally Threaded, Shoulder Style Without Shoulder
