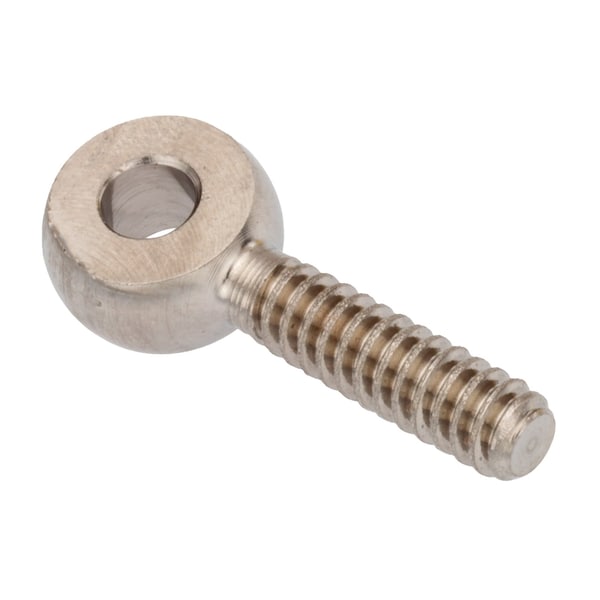

Fixed Rod End, Stainless Steel, Plain
Mfr # ZEBM6X40
Zoro # G910723829
product price: $12.79
/eaKey Features
Type
Fixed Rod End
Thread Size
M6-1.00
Rod End Type
Spherical Rod End
Ball Diameter
6 mm
Shank Thread Length
26 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
ZEBM6X40
Zoro #
G910723829
UPC #
-
Country of Origin
United States
Dimensions
Thread Size
M6-1.00
Ball Diameter
6 mm
Shank Thread Length
26 mm
Head Width
7 mm
Shank Thread Size
M6-1.0
Head Outside Diameter
14 mm
Overall Length
47 mm
Bore Diameter
6 mm
Thread Length
26 mm
Eye Inside Diameter
6 mm
Hole Center-to-End Length
40 mm
Shank Length
33 mm
Shank Diameter
6 mm
Eye Thickness
7 mm
Eye Outside Diameter
14 mm
Screw Size
6 mm
Description
Fixed Rod End, Eye Inside Diameter 6 mm, Eye Outside Diameter 14 mm, Eye Thickness 7 mm, Plain, Stainless Steel, Material Grade/Class 304, Material Quality Standards ASTM A582, REACH Compliant Yes, Hole Center-to-End Length 40 mm, RoHS Compliant Yes, Shank Diameter 6 mm, Thread Style Fully Threaded, Metric Coarse, Thread Direction Right Hand, Thread Length 26 mm, Thread Pitch 1 mm, Thread Size M6-1.00, Shank Length 33 mm, Externally Threaded, Shoulder Style Without Shoulder
