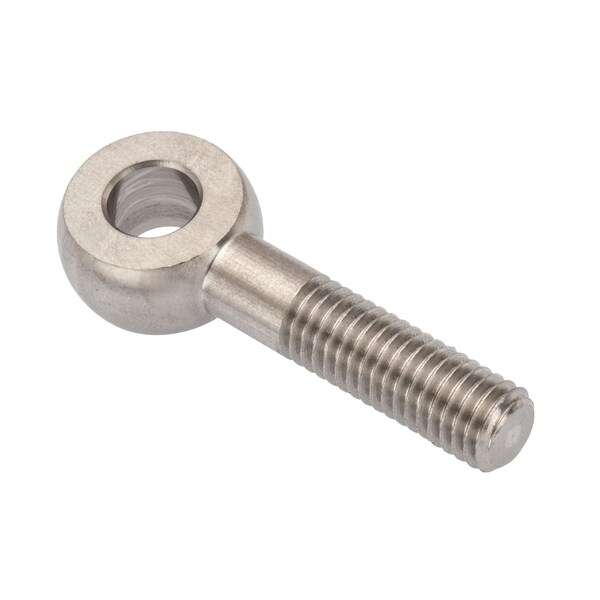

Fixed Rod End, Stainless Steel, Plain
Mfr # ZEBM8X30-174
Zoro # G510724226
product price:Â $16.59
/eaKey Features
Type
Fixed Rod End
Thread Size
M8-1.25
Overall Length
39 mm
Head Outside Diameter
18 mm
Head Width
9 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
ZEBM8X30-174
Zoro #
G510724226
UPC #
-
Country of Origin
United States
Dimensions
Thread Size
M8-1.25
Overall Length
39 mm
Head Outside Diameter
18 mm
Head Width
9 mm
Shank Thread Length
22 mm
Ball Diameter
8 mm
Shank Thread Size
M8-1.25
Bore Diameter
8 mm
Shank Diameter
8 mm
Screw Size
8 mm
Shank Length
22 mm
Thread Length
22 mm
Eye Inside Diameter
8 mm
Hole Center-to-End Length
30 mm
Eye Thickness
9 mm
Eye Outside Diameter
18 mm
Description
Fixed Rod End, Eye Inside Diameter 8 mm, Eye Outside Diameter 18 mm, Eye Thickness 9 mm, Plain, Stainless Steel, Material Grade/Class 17-4, Material Quality Standards ASTM A693, REACH Compliant Yes, Hole Center-to-End Length 30 mm, RoHS Compliant Yes, Shank Diameter 8 mm, Thread Style Fully Threaded, Metric Coarse, Thread Direction Right Hand, Thread Length 22 mm, Thread Pitch 1.25 mm, Thread Size M8-1.25, Shank Length 22 mm, Externally Threaded, Shoulder Style Without Shoulder
