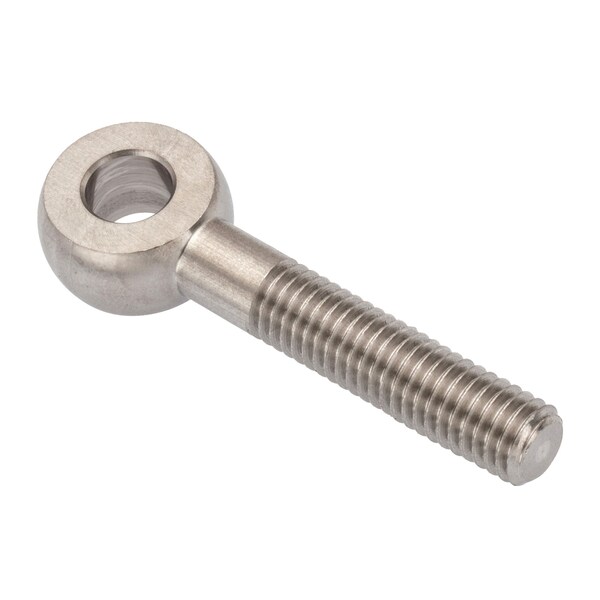

Fixed Rod End, Stainless Steel, Plain
Mfr # ZEBM8X40
Zoro # G510724349
product price:Â $14.79
/eaKey Features
Type
Fixed Rod End
Thread Size
M8-1.25
Ball Diameter
8 mm
Rod End Type
Spherical Rod End
Housing Material
Stainless Steel
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ZEBM8X40
- Zoro #
- G510724349
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Thread Size
- M8-1.25
- Ball Diameter
- 8 mm
- Overall Length
- 49 mm
- Head Outside Diameter
- 18 mm
- Shank Thread Length
- 24 mm
- Shank Thread Size
- M8-1.25
- Head Width
- 9 mm
- Bore Diameter
- 8 mm
- Eye Inside Diameter
- 8 mm
- Thread Length
- 24 mm
- Screw Size
- 8 mm
- Shank Length
- 31 mm
- Shank Diameter
- 8 mm
- Eye Thickness
- 9 mm
- Eye Outside Diameter
- 18 mm
- Hole Center-to-End Length
- 40 mm
- Wire Rope Length
- 49 mm
Description
Fixed Rod End, Eye Inside Diameter 8 mm, Eye Outside Diameter 18 mm, Eye Thickness 9 mm, Plain, Stainless Steel, Material Grade/Class 304, Material Quality Standards ASTM A582, REACH Compliant Yes, Hole Center-to-End Length 40 mm, RoHS Compliant Yes, Shank Diameter 8 mm, Thread Style Fully Threaded, Metric Coarse, Thread Direction Right Hand, Thread Length 24 mm, Thread Pitch 1.25 mm, Thread Size M8-1.25, Shank Length 31 mm, Externally Threaded, Shoulder Style Without Shoulder
