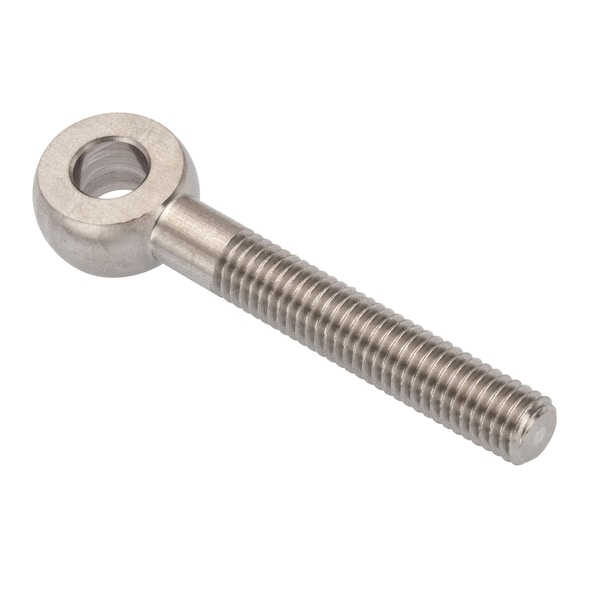

Fixed Rod End, Stainless Steel, Plain
Mfr # ZEBM8X70-LH
Zoro # G410723954
product price:Â
$
19.19
/ea
Key Features
Type
Fixed Rod End
Thread Size
M8x1.25
Housing Material
Stainless Steel
Shank Thread Direction
Left Hand
Head Outside Diameter
18 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ZEBM8X70-LH
- Zoro #
- G410723954
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Thread Size
- M8x1.25
- Head Outside Diameter
- 18 mm
- Shank Thread Size
- M8-1.25
- Shank Thread Length
- 54 mm
- Overall Length
- 79 mm
- Head Width
- 9 mm
- Ball Diameter
- 8 mm
- Bore Diameter
- 8 mm
- Screw Size
- 8 mm
- Shank Diameter
- 8 mm
- Eye Inside Diameter
- 8 mm
- Shank Length
- 61 mm
- Thread Length
- 54 mm
- Eye Outside Diameter
- 18 mm
- Eye Thickness
- 9 mm
- Hole Center-to-End Length
- 70 mm
- Wire Rope Length
- 79 mm
- Minimum Thread Length
- 54 mm
- Length
- 79 mm
Description
Fixed Rod End, Eye Inside Diameter 8 mm, Eye Outside Diameter 18 mm, Eye Thickness 9 mm, Plain, Stainless Steel, Material Grade/Class 304, Material Quality Standards ASTM A582, REACH Compliant Yes, Hole Center-to-End Length 70 mm, RoHS Compliant Yes, Shank Diameter 8 mm, Thread Style Fully Threaded, Metric Coarse, Thread Direction Left Hand, Thread Length 54 mm, Thread Pitch 1.25 mm, Thread Size M8x1.25, Shank Length 61 mm, Externally Threaded, Shoulder Style Without Shoulder
