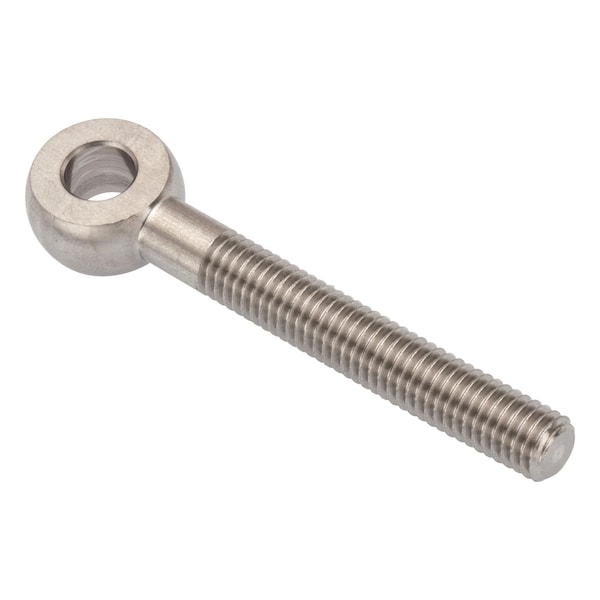

Fixed Rod End, Stainless Steel, Plain
Mfr # ZEBM8X90-LH
Zoro # G110724374
product price:Â
$
22.39
/ea
Key Features
Type
Fixed Rod End
Thread Size
M8x1.25
Head Width
9 mm
Shank Thread Length
74 mm
Standards
DFARS, RoHS Compliant
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ZEBM8X90-LH
- Zoro #
- G110724374
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Thread Size
- M8x1.25
- Head Width
- 9 mm
- Shank Thread Length
- 74 mm
- Head Outside Diameter
- 18 mm
- Shank Thread Size
- M8-1.25
- Ball Diameter
- 8 mm
- Overall Length
- 99 mm
- Bore Diameter
- 8 mm
- Screw Size
- 8 mm
- Shank Diameter
- 8 mm
- Eye Outside Diameter
- 18 mm
- Thread Length
- 74 mm
- Hole Center-to-End Length
- 90 mm
- Eye Inside Diameter
- 8 mm
- Eye Thickness
- 9 mm
- Shank Length
- 81 mm
- Wire Rope Length
- 99 mm
- Minimum Thread Length
- 74 mm
- Length
- 99 mm
Description
Fixed Rod End, Eye Inside Diameter 8 mm, Eye Outside Diameter 18 mm, Eye Thickness 9 mm, Plain, Stainless Steel, Material Grade/Class 304, Material Quality Standards ASTM A582, REACH Compliant Yes, Hole Center-to-End Length 90 mm, RoHS Compliant Yes, Shank Diameter 8 mm, Thread Style Fully Threaded, Metric Coarse, Thread Direction Left Hand, Thread Length 74 mm, Thread Pitch 1.25 mm, Thread Size M8x1.25, Shank Length 81 mm, Externally Threaded, Shoulder Style Without Shoulder
