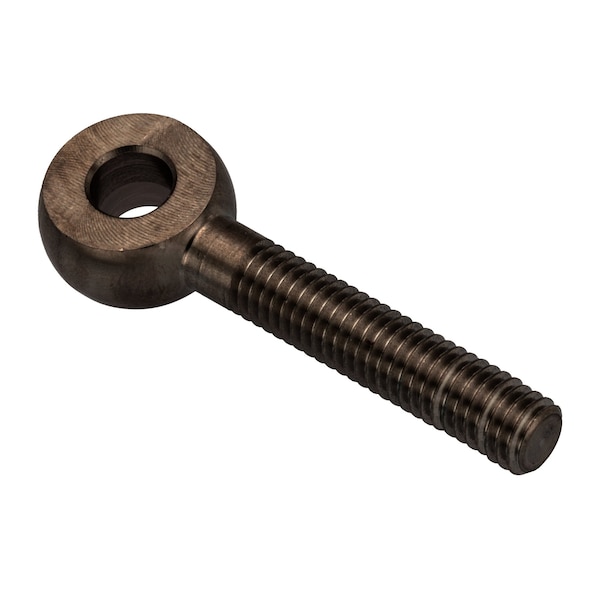

Fixed Rod End, Steel, Black Oxide
Mfr # ZEBM5X45-STL-BX
Zoro # G410724227
product price:Â
$
12.99
/ea
Key Features
Type
Fixed Rod End
Thread Size
M5x0.80
Head Width
6 mm
Overall Length
51 mm
System of Measurement
Metric
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ZEBM5X45-STL-BX
- Zoro #
- G410724227
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Thread Size
- M5x0.80
- Head Width
- 6 mm
- Overall Length
- 51 mm
- Shank Thread Length
- 31 mm
- Head Outside Diameter
- 12 mm
- Ball Diameter
- 5 mm
- Shank Thread Size
- M5-0.8
- Bore Diameter
- 5 mm
- Shank Diameter
- 5 mm
- Screw Size
- 5 mm
- Shank Length
- 39 mm
- Hole Center-to-End Length
- 45 mm
- Eye Outside Diameter
- 12 mm
- Eye Thickness
- 6 mm
- Thread Length
- 31 mm
- Eye Inside Diameter
- 5 mm
- Wire Rope Length
- 51 mm
- Minimum Thread Length
- 31 mm
- Length
- 51 mm
Description
Fixed Rod End, Eye Inside Diameter 5 mm, Eye Outside Diameter 12 mm, Eye Thickness 6 mm, Black Oxide, Steel, Material Grade/Class 12L14, Material Quality Standards ASTM A576, REACH Compliant Yes, Hole Center-to-End Length 45 mm, RoHS Compliant Yes, Shank Diameter 5 mm, Thread Style Fully Threaded, Metric Coarse, Thread Direction Right Hand, Thread Length 31 mm, Thread Pitch 0.8 mm, Thread Size M5x0.80, Shank Length 39 mm, Externally Threaded, Shoulder Style Without Shoulder
