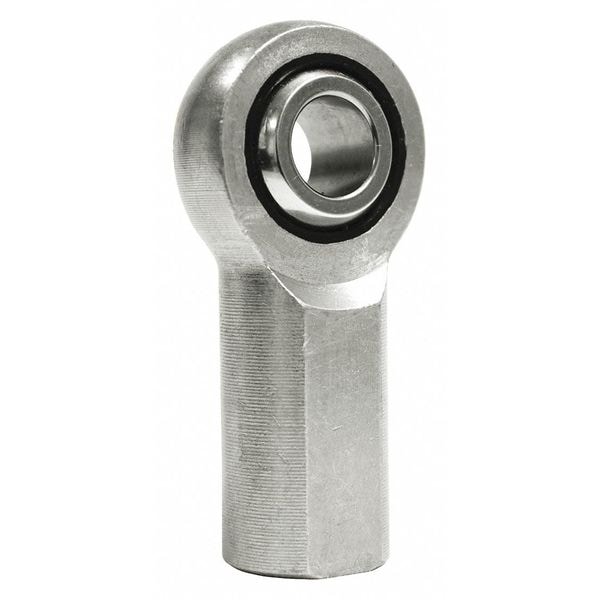

Female Rod End, Nylon/PTFE, RH, 7/16-20
- Mfr # NFR7
- Zoro # G4425425
product price:Â
$
7.39
/ea
Key Features
Type
Female Plain
Ball
52100 Steel Spherical
Thread
Right Hand
Thread Size
7/16"-20
Inside Dia.
0.4375/0.4395 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- NFR7
- Zoro #
- G4425425
- UPC #
- 806990024329
- Country of Origin
- China
Dimensions
- Thread Size
- 7/16"-20
- Inside Dia.
- 0.4375/0.4395 in
- Dimension E
- 1.125 in
- Dimension AA
- 0.4375/0.4395 in
- Dimension H
- 1.062 in
- Dimension A
- 7/16"-20
- Dimension J
- 2.375 in
- Dimension G
- 1.812 in
- Dimension N
- 0.562 in
- Bore Diameter Tolerance
- +0.0025/-0.0005 in
- Inner Ring Width
- 0.562 in
- Overall Length
- 2 3/8 in
- Head Width
- 0.437 in
- Bore Diameter
- 7/16 in
- Shank Thread Length
- 1 in
- Ball Diameter
- 0.812 in
- Head Outside Diameter
- 1 1/8 in
- Shank Thread Size
- 7/16"-20
- Wire Rope Length
- 2 3/8 in
- Length
- 2 3/8 in
Description
Spherical Rod End, System of Measurement Inch, Bore Diameter 7/16 in, Head Outside Diameter 1 1/8 in, Head Width 0.437 in, Shank Thread Length 1 in, Shank Thread Size 7/16 In.-20, Housing Material Carbon Steel, Shank Thread Direction Right Hand, Application Low Load, Moderate Oscillation, Ball Diameter 0.812 in, Ball Material Alloy Steel, Ball Material Grade 52100, Bore Diameter Tolerance +0.0025/-0.0005 in, Housing Material Finish Chrome Plated, Inner Ring Width 0.562 in
