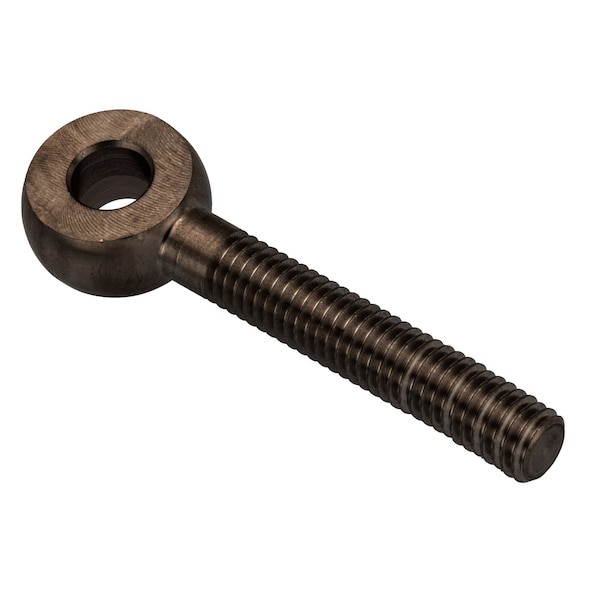

Fixed Rod End, Steel, Black Oxide
Mfr # ZEBM5X60-STL-BX
Zoro # G210724038
product price:Â
$
15.59
/ea
Key Features
Type
Fixed Rod End
Thread Size
M5x0.80
System of Measurement
Metric
Head Width
6 mm
Housing Material
Alloy Steel
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ZEBM5X60-STL-BX
- Zoro #
- G210724038
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Thread Size
- M5x0.80
- Head Width
- 6 mm
- Overall Length
- 66 mm
- Ball Diameter
- 5 mm
- Shank Thread Length
- 46 mm
- Shank Thread Size
- M5-0.8
- Head Outside Diameter
- 12 mm
- Bore Diameter
- 5 mm
- Thread Length
- 46 mm
- Eye Inside Diameter
- 5 mm
- Screw Size
- 5 mm
- Eye Outside Diameter
- 12 mm
- Hole Center-to-End Length
- 60 mm
- Eye Thickness
- 6 mm
- Shank Length
- 54 mm
- Shank Diameter
- 5 mm
- Wire Rope Length
- 66 mm
- Minimum Thread Length
- 46 mm
- Length
- 66 mm
Description
Fixed Rod End, Eye Inside Diameter 5 mm, Eye Outside Diameter 12 mm, Eye Thickness 6 mm, Black Oxide, Steel, Material Grade/Class 12L14, Material Quality Standards ASTM A576, REACH Compliant Yes, Hole Center-to-End Length 60 mm, RoHS Compliant Yes, Shank Diameter 5 mm, Thread Style Fully Threaded, Metric Coarse, Thread Direction Right Hand, Thread Length 46 mm, Thread Pitch 0.8 mm, Thread Size M5x0.80, Shank Length 54 mm, Externally Threaded, Shoulder Style Without Shoulder
