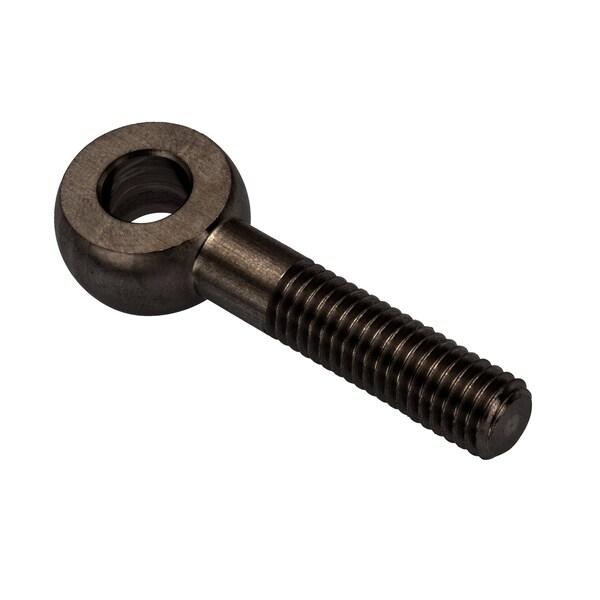

Fixed Rod End, Steel, Black Oxide
Mfr # ZEBM8X35LH-STL-BX
Zoro # G210724311
product price:Â
$
17.59
/ea
Key Features
Type
Fixed Rod End
Thread Size
M8x1.25
Head Width
9 mm
Shank Thread Direction
Left Hand
Overall Length
44 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ZEBM8X35LH-STL-BX
- Zoro #
- G210724311
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Thread Size
- M8x1.25
- Head Width
- 9 mm
- Overall Length
- 44 mm
- Head Outside Diameter
- 18 mm
- Shank Thread Size
- M8-1.25
- Ball Diameter
- 8 mm
- Shank Thread Length
- 22 mm
- Bore Diameter
- 8 mm
- Eye Outside Diameter
- 18 mm
- Eye Inside Diameter
- 8 mm
- Shank Length
- 26 mm
- Shank Diameter
- 8 mm
- Screw Size
- 8 mm
- Eye Thickness
- 9 mm
- Thread Length
- 22 mm
- Hole Center-to-End Length
- 35 mm
- Wire Rope Length
- 44 mm
- Minimum Thread Length
- 22 mm
- Length
- 44 mm
Description
Fixed Rod End, Eye Inside Diameter 8 mm, Eye Outside Diameter 18 mm, Eye Thickness 9 mm, Black Oxide, Steel, Material Grade/Class 12L14, Material Quality Standards ASTM A576, REACH Compliant Yes, Hole Center-to-End Length 35 mm, RoHS Compliant Yes, Shank Diameter 8 mm, Thread Style Fully Threaded, Metric Coarse, Thread Direction Left Hand, Thread Length 22 mm, Thread Pitch 1.25 mm, Thread Size M8x1.25, Shank Length 26 mm, Externally Threaded, Shoulder Style Without Shoulder
