  9. GT 4C 44 PIN RECP

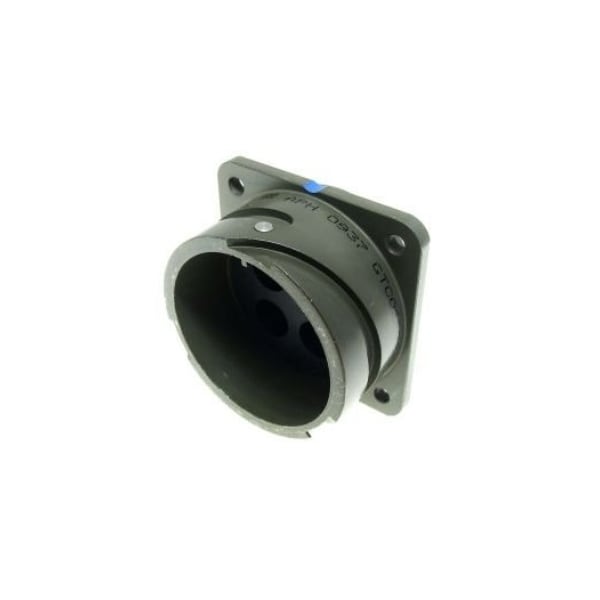

Amphenol GT 4C 44 PIN RECP GTC02R3217P - main

GT 4C 44 PIN RECP

  • Mfr # GTC02R3217P

  • Zoro # G707562303

product price: $61.29
/ea

Key Features

Insert Arrangement
32-17
Orientation
Straight
Shell Color
Olive Drab
Shielding
Yes
Operating Voltage AC V RMS Max
900
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GTC02R3217P
Zoro #
G707562303
UPC #
-
Country of Origin
United States

Dimensions

Contact Size
4#4

Details

Insert Arrangement
32-17
Orientation
Straight
Shell Color
Olive Drab
Shielding
Yes
Operating Voltage AC V RMS Max
900
Contact Mating Life
500
Contact Style
Pin
Operating Temperature °F (°C)
-67 - +257 (-55 to +125)
Contact Plating
Silver
Sealing
IP67
Insert Material
Neoprene
Connector Style
Receptacle
Connector Type
Connector Circular
Endbell Type
Threaded - UNEF - Ext
Insert Rotation/Keying
Normal
Mounting Type
Box - Front Mount
Amperage Rating
80A
Termination Method
Crimp
Grommet & Seals Material
Neoprene
Crimp Wire Gauge
4
Contact Material
Copper Alloy
Service Rating
D
Operating Voltage DC
1250
Shell Plating
Olive Drab Cadmium
No. of Contacts
4
Specification
MIL-DTL-5015 Type
Contacts Supplied
Yes
Shell Material
Aluminum Alloy
