  9. Clamp-On Power Meter, LCD, 1,000 kW, 1,000 A, CAT IV Safety Rating, AA Batteries Power Source

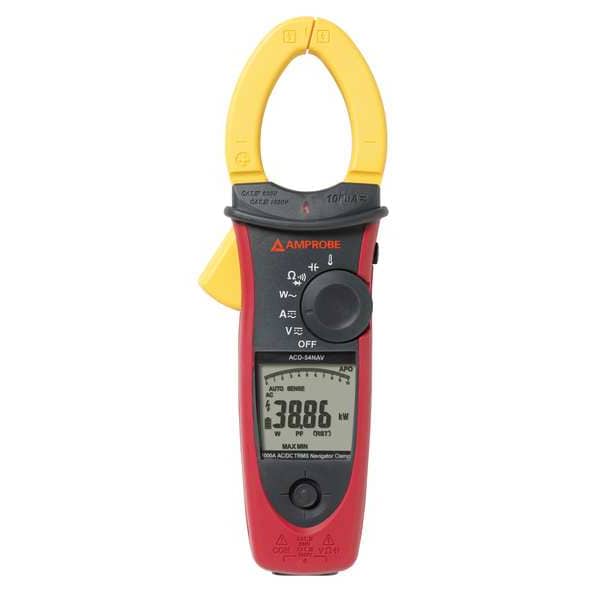

Amprobe Clamp-On Power Meter, LCD, 1,000 kW, 1,000 A, CAT IV Safety Rating, AA Batteries Power Source ACDC-54NAV - main

Clamp-On Power Meter, LCD, 1,000 kW, 1,000 A, CAT IV Safety Rating, AA Batteries Power Source

  • Mfr # ACDC-54NAV

  • Zoro # G3715467

product price: $615.99
/ea
Free Shipping & Returns

Key Features

Max. Watts
1,000 kW
Max. AC Amps
1,000
Max. DC Volts
1,000
Temp. Range
-50 Degrees to 1832 Degrees F (-50 Degrees to 1000 Degrees C)
Safety Rating
CAT IV
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ACDC-54NAV
Zoro #
G3715467
UPC #
095969556675
Country of Origin
Taiwan, Province of China

Dimensions

Manufacturers Warranty Length
1 yr
Battery Size
AA

Details

Item
Clamp-On Power Meter
Max. Watts
1,000 kW
Max. AC Amps
1,000
Max. DC Volts
1,000
Temp. Range
-50 Degrees to 1832 Degrees F (-50 Degrees to 1000 Degrees C)
Safety Rating
CAT IV
Power Source
AA Batteries
Display
LCD
Jaw Opening
1.6 in
Max. DC Amps
1,000
Max. AC Volts
1,000
Voltage Accuracy
AC +/-1.0% Rdg +5 Digits, DC +/-0.7% Rdg +2 Digits
Current Accuracy
+/-1.5% Rdg +5 Digits
Calibration Frequency
20 Hz to 10 KHz
Thermometer Type
K-Type
Max. Resistance
100 K Ohms
Peak Capture
Yes
True RMS
Yes
Includes
Banana K-Type Thermocouple, Carrying Case, Test Leads
Special Features
Continuity Beeper Quickly Identifies Shorts and Opens, Inrush Current Measurement and Phase Rotation Indication for 3-Phase Motors, Low Pass Filter Allows Measurement of Voltage and Frequency of Variable Frequency Drives, Non-Contact Voltage Detection Enhances Safety
Counts
10,000
Operating Temp. Range
32 Degrees to 122 Degrees F (0 Degrees C to 50 Degrees C)
Power Factor
-1.00 to 1.00
Power Accuracy
+/-2.5% Rdg +5 Digits
Auto Power Off
Yes
Data Hold
Yes
Audible Continuity
Yes
Non-Contact Voltage Detector
Yes
Frequency Counter
20.0Hz to 10KHz
Diode Test
No
Auto Ranging
Yes
Peak Hold
Yes
Minimum Resistance Measurement
1 kiloohm
Basic DC Voltage Accuracy
+/-0.70%
Minimum Temperature Measurement
-50 Degrees F
Minimum DC Current Measurement
100 A
Maximum Capacitance Measurement
4 mF
Wattage Measurement Accuracy
+/-2.50%
Frequency Measurement Accuracy
+/-0.50%
Intrinsically Safe
No
Maximum Wattage
1,000 kW
Minimum Capacitance Measurement
400 uF
Power Measurement Accuracy
+/-2.50%
Minimum AC Voltage Measurement
100 V
Minimum Wattage
10 kW
Display Type
Backlit Digital Display
Maximum AC Voltage Measurement
1,000 V
Maximum AC Current Measurement
1,000 A
Basic AC Voltage Accuracy
+/-1.00%
Battery Chemistry
Alkaline
Capacitance Measurement Accuracy
+/-1.90%
Battery Voltage
1,000V; 100V
Temperature Measurement Resolution
0.8 Degrees C
Basic DC Current Accuracy
+/-1.50%
Minimum Power
10 kW
Minimum AC Current Measurement
100 A
Maximum DC Voltage Measurement
1,000 V
Maximum DC Current Measurement
1,000 A
Maximum Frequency Measurement
10 kHz
Maximum Operating Temperature
1,832 Degrees F
Basic AC Current Accuracy
+/-1.50%
Batteries Included
Yes
Minimum DC Voltage Measurement
100 V
Minimum Frequency Measurement
20 Hz
Temperature Measurement Accuracy
+/-1.00%
Maximum Temperature Measurement
1,832 Degrees F
Maximum Power
1,000 kW
Maximum Resistance Measurement
100 kiloohm
Resistance Measurement Accuracy
+/-1.00%
Minimum Operating Temperature
-50 Degrees F
Parameters Measured
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature (K)

Description

Clamp On Power Meter, Basic AC Current Accuracy +/-1.50 Percent, Basic AC Voltage Accuracy +/-1.00 Percent, Basic DC Current Accuracy +/-1.50 Percent, Basic DC Voltage Accuracy +/-0.70 Percent, Batteries Included Yes, Battery Chemistry Alkaline, Battery Size AA, Battery Voltage 1,000V; 100V, Calibration Certificate Included Traceable without Data, Calibration Frequency 20 Hz to 10 KHz, Capacitance Measurement Accuracy +/-1.90 Percent, Counts 10,000, Data Logging No, Display Type Backlit LCD
