Shop AMPROBE

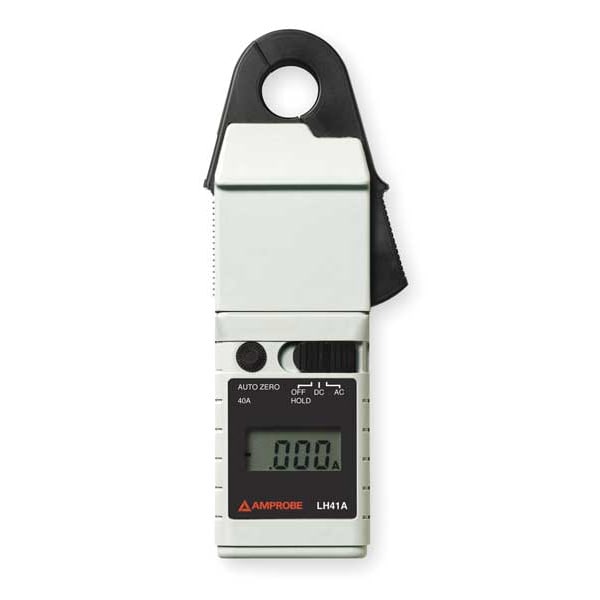

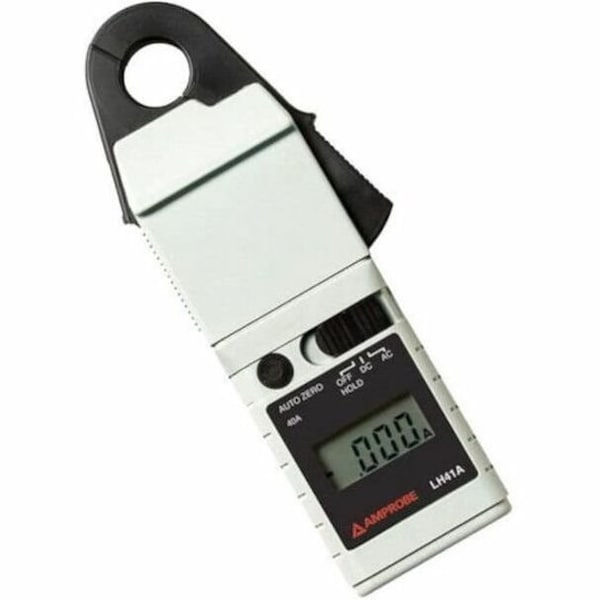

Digital Clamp Meter, LCD, 40 A, 0.8 in (20 mm) Jaw Capacity, CAT III 300V Safety Rating

  • Mfr # LH41A

  • Zoro # G0517535

product price:
$
811.99
/ea
Free Shipping & Returns

Key Features

Digital/Analog
Digital
Max. AC Amps
40
Clamp Meter Jaw Style
Clamp On
Jaw Capacity
0.8 in (20 mm)
Safety Rating
CAT III 300V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LH41A
Zoro #
G0517535
UPC #
095969416542
Country of Origin
China

Dimensions

Manufacturers Warranty Length
1 yr
Battery Size
9V

Details

Item
Digital Clamp Meter
Digital/Analog
Digital
Max. AC Amps
40
Clamp Meter Jaw Style
Clamp On
Jaw Capacity
0.8 in (20 mm)
Safety Rating
CAT III 300V
Display
LCD
Jaw Opening
0.8 in
Max. DC Amps
40
Calibration Frequency
40 to 400 Hz
AC Current Accuracy
+/-2.0% + 5 Digits
Auto Power Off
Yes
Operating Temp.
14 Degrees to 122 Degrees F
AC Response
Average
Data Hold
Yes
Counts
4,000
Auto Ranging
Yes
Includes
LH41A
Special Features
1 mA Resolution, Auto Zero Button to Zero Display for DC, Precise Low Current Measurement
Battery Type
9V
Data Logging
Yes
Audible Continuity
No
Frequency Counter
40 Hz to 400 Hz in AC
Waterproof
No
AC Response Calculation
Average
Maximum AC Current Measurement
40 A
Frequency Measurement Accuracy
+/- 1.3% + 5 digits
Basic DC Current Accuracy
+/- 1.3% + 5 digits
Minimum AC Current Measurement
1 mA
Current Leakage Testing
No
Dustproof
No
Minimum DC Current Measurement
1 mA
Basic AC Current Accuracy
+/- 1.3% + 5 digits
Calibration Certificate Included
No Certification Included
Batteries Included
Yes
Jaw Style
Clamp
DC Current Measurement Resolution
1 mA
Parameters Measured
AC Current, DC Current, Frequency
Instrument Counts
4,000
Battery Access
Yes
Intrinsically Safe
No
AC Current Measurement Resolution
1 mA
Display Type
LCD
Bluetooth Compatible
No
Thermal Imaging
No
Removable Screen
No
Maximum DC Current Measurement
40 A
Maximum Frequency Measurement
400 Hz
Includes Auto Sensing
No Auto Sensing Included
Jaw Detachability
Fixed
CAT Safety Rating
CAT III 300V

Description

Digital Clamp Meter, Audible Continuity No, Safety Rating CAT III 300V, AC Response Calculation Average, Maximum AC Current Measurement 40 A, Maximum AC Voltage Measurement Not Applicable, Maximum DC Current Measurement 40 A, Maximum DC Voltage Measurement Not Applicable, Current Leakage Testing No, Parameters Measured AC Current, DC Current, Frequency, Intrinsically Safe No, Dustproof No, Waterproof No, Data Logging Yes, Thermal Imaging No, Removable Screen No, Bluetooth Compatible No
