  5. Digital Clamp Meter, Dual LCD, 600 A, 1.1 in (28 mm) Jaw Capacity, CAT III 600V Safety Rating

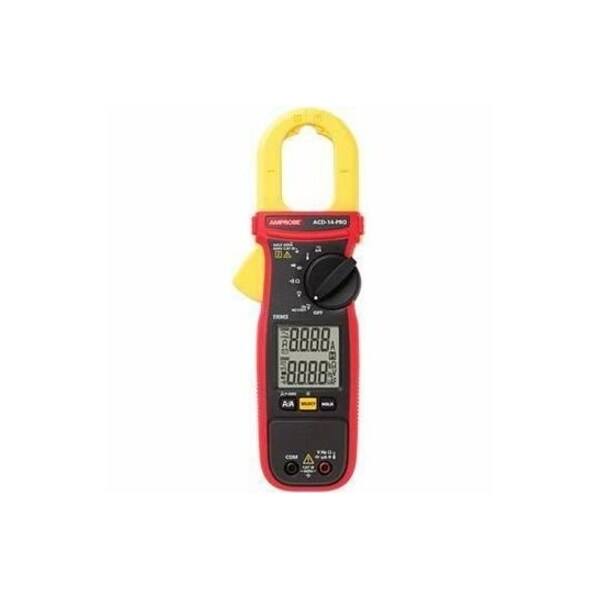

Amprobe Digital Clamp Meter, Dual LCD, 600 A, 1.1 in (28 mm) Jaw Capacity, CAT III 600V Safety Rating ACD-14-PRO - main

Digital Clamp Meter, Dual LCD, 600 A, 1.1 in (28 mm) Jaw Capacity, CAT III 600V Safety Rating

  • Mfr # ACD-14-PRO

  • Zoro # G6390049

product price:  $283.99
/ea
Free Shipping & Returns

Key Features

Digital/Analog
Digital
Max. AC Amps
600
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
600 V
Max. Ohms
6,000
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
ACD-14-PRO
Zoro #
G6390049
UPC #
095969806275
Country of Origin
Taiwan, Province of China

Dimensions

Max. Conductor Size
1.18 in (30.0mm)
Manufacturers Warranty Length
1 yr
Battery Size
AAA
Maximum Conductor Size
1.18 in (30.0mm)

Details

Item
Digital Clamp Meter
Digital/Analog
Digital
Max. AC Amps
600
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
600 V
Max. Ohms
6,000
Jaw Capacity
1.1 in (28 mm)
Temp. Range
-40 Degrees to 752 Degrees F
Safety Rating
CAT III 600V
Display
Dual LCD
Jaw Opening
1.1 in
Max. DC Amps
2,000 uA
Max. AC Volts
600 V
Calibration Frequency
50 to 60 Hz
Peak Hold
Yes
Data Hold
Yes
Midscale Resistance
30 ohm
Battery Type
AAA
Non-Contact Voltage Detector
Yes
Bar Graph
No
Thermometer Type
Type K Thermocouple
Auto Ranging
Yes
AC Response
TRMS
Audible Continuity
Yes
Diode Test
Yes
Operating Temp.
32 Degrees to 104 Degrees F
Standards
CSA
Auto Power Off
Yes
AC Current Accuracy
+/-2.0% + 5 Digits
Inrush
Yes
Includes
ACD-14-PRO, Carrying Case, Test Leads, Type K Thermocouple with Banana Plug
Counts
4,000
Calibration Certificate
Not Included
Frequency Counter
5 Hz to 999.9 Hz
Memory
Data Hold
Capacitance
2,500 uF
Data Logging
Yes
Special Features
HVAC Applications with Temperature, DC Micro-amps and Capacitance, Low Battery Indicator, Low Pass Filter for Current and Voltage Measurements on Variable Frequency Drives, Non-Contact Voltage Detection (NCV)
Maximum Operating Temperature
752 Degrees F
Display Type
LCD
Bar Graph Included
No
Parameters Measured
AC Current, AC Voltage, DC Current, DC Voltage, Temperature (K)
Calibration Certificate Included
No
Thermal Imaging
No
Maximum AC Voltage Measurement
600 V
Maximum DC Current Measurement
2,000 uA
AC Response Calculation
TRMS
Removable Screen
No
Dustproof
No
Waterproof
No
Maximum DC Voltage Measurement
600 V
Current Leakage Testing
No
Battery Access
Yes
Jaw Style
Clamp-Jaw
Maximum Resistance Measurement
6,000 ohm
Instrument Counts
4,000
Batteries Included
Yes
Bluetooth Compatible
No
Minimum Operating Temperature
-40 Degrees F
Maximum AC Current Measurement
600 A
Inrush Current Measurable
Yes
Intrinsically Safe
No
Maximum Capacitance Measurement
2,500 uF

Description

Digital Clamp Meter, Audible Continuity Yes, Safety Rating CAT III 600V, AC Response Calculation TRMS, Maximum AC Current Measurement 600 A, Maximum AC Voltage Measurement 600 V, Maximum DC Current Measurement 2,000 uA, Maximum DC Voltage Measurement 600 V, Current Leakage Testing No, Parameters Measured AC Current, AC Voltage, DC Current, DC Voltage, Temperature, Intrinsically Safe No, Dustproof No, Waterproof No, Data Logging Yes, Thermal Imaging No, Removable Screen No
