Shop AMPROBE

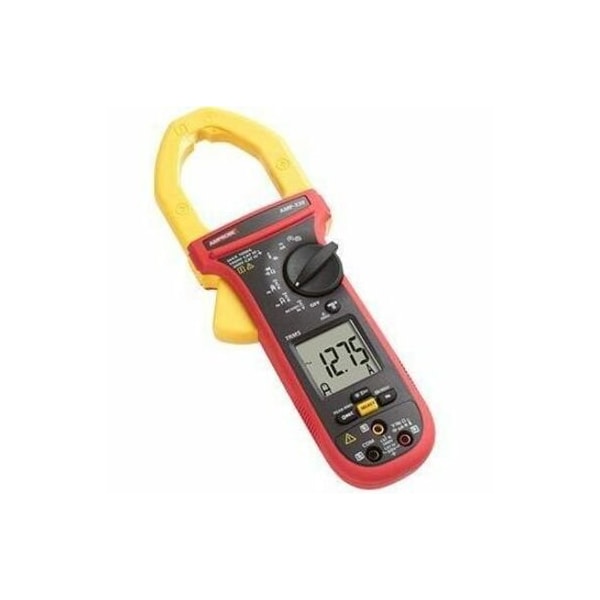

Digital Clamp Meter, LCD, 1,000 A, 2.0 in (51 mm) Jaw Capacity

  • Mfr # AMP-330

  • Zoro # G9486477

product price:  $406.99
/ea
Free Shipping & Returns

Key Features

Digital/Analog
Digital
Max. AC Amps
1,000
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
1,000 V
Max. Ohms
60,000
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
AMP-330
Zoro #
G9486477
UPC #
095969770897
Country of Origin
Taiwan, Province of China

Dimensions

Manufacturers Warranty Length
1 yr
Max. Conductor Size
2.00 in (51.0mm)
Battery Size
AAA
Maximum Conductor Size
2.00 in (51.0mm)

Details

Item
Digital Clamp Meter
Digital/Analog
Digital
Max. AC Amps
1,000
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
1,000 V
Max. Ohms
60,000
Jaw Capacity
2.0 in (51 mm)
Temp. Range
-40 Degrees to 752 Degrees F
Safety Rating
CAT III 1000V, CAT IV 600V
Display
LCD
Jaw Opening
2 in
Max. DC Amps
1,000
Max. AC Volts
1,000 V
Audible Continuity
Yes
Includes
Carrying Case, Type K Banana Plug Thermocouple, Test Leads with Alligator Clips
Bar Graph
No
Auto Power Off
Yes
Peak Hold
Yes
Battery Type
AAA
Standards
CE, cULus
AC Response
TRMS
Capacitance
2,500 uF
Counts
6,000
Calibration Certificate
Not Included
Frequency Counter
5 Hz to 999.9 Hz
Inrush
Yes
Operating Temp.
14 Degrees to 122 Degrees F
AC Current Accuracy
+/-2.0% + 5 Digits
Special Features
Amp Tip Function
Auto Ranging
Yes
Thermometer Type
Type K Thermocouple
Diode Test
Yes
Non-Contact Voltage Detector
Yes
Data Hold
Yes
Data Logging
Yes
Dustproof
No
Maximum Operating Temperature
122 Degrees F
Parameters Measured
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature
Waterproof
No
Capacitance Measurement Accuracy
+/-2.0% + 4LSD
Calibration Certificate Included
No Certification Included
Inrush Current Measurable
Yes
AC Response Calculation
TRMS
Thermal Imaging
No
Intrinsically Safe
No
Instrument Counts
6,000
Current Leakage Testing
No
Minimum Operating Temperature
14 Degrees F
Maximum Capacitance Measurement
2,500 uF
Basic DC Voltage Accuracy
+/-1.0% + 5LSD
Basic AC Voltage Accuracy
+/-0.8% + 5LSD (50 to 60 Hz)
Maximum AC Current Measurement
600 A
Maximum DC Voltage Measurement
1,000 V
Maximum DC Current Measurement
1,000 A
Bluetooth Compatible
No
Removable Screen
No
Resistance Measurement Accuracy
+/-1.0% + 5LSD
Maximum Resistance Measurement
60,000 ohm
Display Type
LCD
Basic AC Current Accuracy
+/-1.8% + 5LSD (50 to 60 Hz) +/-2.0% + 5LSD (100 to 400 Hz)
Bar Graph Included
No
Jaw Style
Clamp
Maximum AC Voltage Measurement
1,000 V
Frequency Measurement Accuracy
+/-1.00% + 5 LSD (600 V Range); +/-2.00% + 4 LSD (600 A Range)
Basic DC Current Accuracy
+/-1.8% + 5LSD (DC 50 to 100 Hz)
Minimum DC Voltage Measurement
0.1 V
CAT Safety Rating
CAT III 1000V, CAT IV 600V
Minimum DC Current Measurement
0.1 A
Maximum Frequency Measurement
400 Hz
Minimum AC Voltage Measurement
0.1 V
Minimum Resistance Measurement
0.1 ohm
Jaw Detachability
Fixed
Includes Auto Sensing
No Auto Sensing Included
Minimum AC Current Measurement
0.1 A

Description

Digital Clamp Meter, Audible Continuity Yes, Safety Rating CAT III 1000V, CAT IV 600V, AC Response Calculation TRMS, Maximum AC Current Measurement 600 A, Maximum AC Voltage Measurement 1,000 V, Maximum DC Current Measurement 1,000 A, Maximum DC Voltage Measurement 1,000 V, Current Leakage Testing No, Parameters Measured AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature, Intrinsically Safe No, Dustproof No, Waterproof No, Data Logging Yes
