Multimeter Style
|
Full Size - Advanced Features - Harsh Environment
|
|
Item
|
Digital Multimeter
|
|
Instrument Counts
|
9,999
|
|
Basic DC Accuracy
|
+/-0.10% of Reading + 5 Digits
|
|
Instrument Safety Rating
|
CAT IV 1000V
|
|
Max. AC Volts
|
1,000
|
|
Max. DC Volts
|
1,500
|
|
Max. AC Amps
|
2
|
|
Max. DC Amps
|
2
|
|
Audible Continuity
|
Yes
|
|
Max. Ohms
|
40 megohm
|
|
Auto Power Off
|
Yes
|
|
Display
|
LCD
|
|
Standards
|
CE, cULus, US N10140
|
|
Special Features
|
Auto Power-Down, Constructed with Drop-Resistant Housing and PCB Mounting, Digi-Glo(TM) Bright Backlight, Display 4 Digit LCD, 9999 Counts, with Annunciators, Menu Features and 41 Segment Bargraph, Highest Voltage Capability, Measuring to 1500 V DC and 1000 V Ac, Input Overload Indication Ol, -Ol, Magne-Grip(TM) Holster, Frees Both Hands for Work, Measures Capacitance, Temperature and Frequency, Polarity Indication Automatic, Special Sealing for Environment and Water Resistance: IP67 Rated, Suitable for Testing Solar Installations, Superior 10,000 Count Resolution with Bar Graph
|
|
Calibration Certificate Included
|
No
|
|
Auto Ranging
|
Yes
|
|
Capacitance Range
|
40 nF to 400 uF
|
|
AC Response
|
TRMS
|
|
Includes
|
Batteries (Installed), Magne-Grip(TM) Holder with Magnetic Hanging Strap, Test Leads
|
|
Data Hold
|
Yes
|
|
Temp. Range
|
-4 Degrees to 2372 Degrees F
|
|
Bar Graph
|
Yes
|
|
Battery Type
|
9V Alkaline
|
|
Series
|

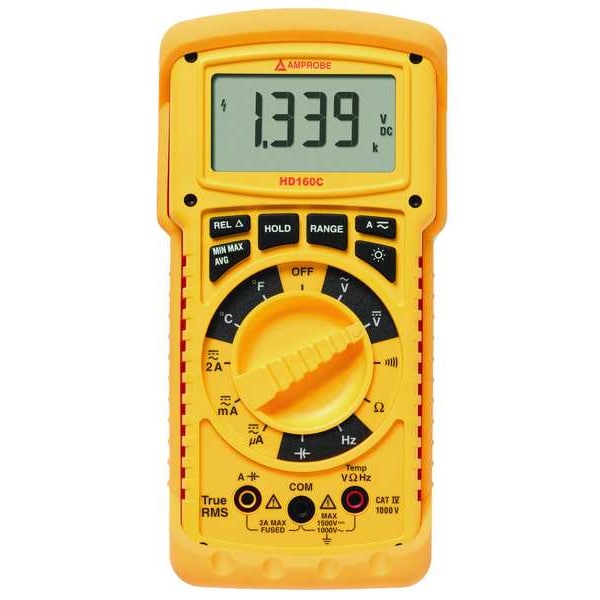

AMPROBE (R) HD160C
|
|
Instrument Frequency Counter Range
|
100 Hz to 10 MHz
|
|
Duty Cycle
|
Yes
|
|
Data Logging
|
No
|
|
Diode Test
|
Yes
|
|
Intrinsically Safe
|
No
|
|
Battery Chemistry
|
Alkaline
|
|
Minimum Capacitance Measurement
|
40 nF
|
|
Maximum Resistance Measurement
|
40 megaohm
|
|
Removable Screen
|
No
|
|
AC Response Calculation
|
TRMS
|
|
Resistance Measurement Accuracy
|
+/-2%
|
|
Minimum Operating Temperature
|
32 Degrees F
|
|
Parameters Measured
|
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature (K)
|
|
Bluetooth Compatible
|
No
|
|
Minimum AC Current Measurement
|
100 uA
|
|
Capacitance Measurement Accuracy
|
3.00 %
|
|
Minimum Resistance Measurement
|
1,000 ohm
|
|
DC Current Measurement Resolution
|
100 uA
|
|
DC Voltage Measurement Resolution
|
1,000 V
|
|
Battery Voltage
|
9V
|
|
Maximum DC Current Measurement
|
2 A
|
|
Maximum AC Current Measurement
|
2 A
|
|
Battery Access
|
Yes
|
|
Display Type
|
LCD
|
|
Waterproof
|
Yes
|
|
Minimum DC Current Measurement
|
100 uA
|
|
Minimum DC Voltage Measurement
|
1,000 V
|
|
Maximum Capacitance Measurement
|
400 uF
|
|
Maximum Operating Temperature
|
122 Degrees F
|
|
Minimum AC Voltage Measurement
|
1,000 mV
|
|
Software Included
|
No
|
|
Computer Interface Connection Type
|
None
|
|
Basic DC Voltage Accuracy
|
+/-0.10% + 5 Digits
|
|
Maximum AC Voltage Measurement
|
1,000 V
|
|
Maximum Temperature Measurement
|
2,372 Degrees F
|
|
Minimum Temperature Measurement
|
-4 Degrees F
|
|
Dustproof
|
Yes
|
|
Bar Graph Included
|
Yes
|
|
Weight
|
20 oz
|
|
Minimum Frequency Measurement
|
100 Hz
|
|
IP Rating
|
IP67
|
|
Capacitance Measurement Resolution
|
40 nF
|
|
Thermal Imaging
|
No
|
|
Maximum Storage Temperature
|
140 Degrees F
|
|
AC Current Measurement Resolution
|
100 uA
|
|
Current Leakage Testing
|
No
|
|
Frequency Measurement Accuracy
|
0.10 %
|
|
Basic AC Voltage Accuracy
|
200 mV to 200 V (45-500 Hz): +/-(0.8 % rdg+4 dgts)200 mV to 200 V (500 Hz-2 kHz): +/-(1.5 % rdg+5 dgts)1000 V (50-60 Hz) +/-(0.8 % rdg+4 dgts)1000 V (60-500 Hz): +/-(1.5 % rdg+5 dgts)
|
|
Basic AC Current Accuracy
|
200 micron A to 20 mA +/-(0.5 % rdg+2 dgts)200 mA to 2 A +/-(1.0 % rdg+2 dgts)
|
|
Batteries Included
|
Yes
|
|
Maximum DC Voltage Measurement
|
1,500 V
|
|
Resistance Measurement Resolution
|
1,000 ohm
|
|
Minimum Storage Temperature
|
-4 Degrees F
|
|
Frequency Measurement Resolution
|
10 Hz
|
|
AC Voltage Measurement Resolution
|
10 V
|
|
Basic DC Current Accuracy
|
200 micron A to 20 mA +/-(0.5 % rdg+2 dgts)200 mA to 2 A +/-(1.0 % rdg+2 dgts)
|
|
Maximum Frequency Measurement
|
10 MHz
|
