  9. Digital Multimeter, 1,000 V Max DC, 1 V Max AC, TRMS, 10,000 Instrument Counts, LCD

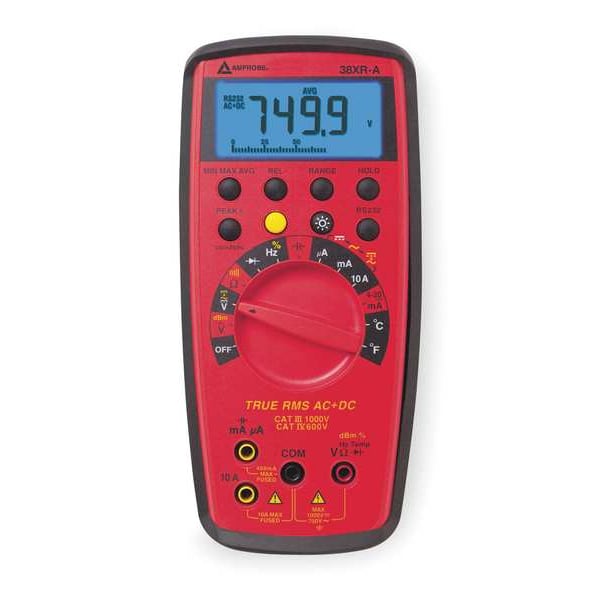

Amprobe Digital Multimeter, 1,000 V Max DC, 1 V Max AC, TRMS, 10,000 Instrument Counts, LCD 38XR-A - main

Digital Multimeter, 1,000 V Max DC, 1 V Max AC, TRMS, 10,000 Instrument Counts, LCD

  • Mfr # 38XR-A

  • Zoro # G3333233

product price: $393.99
/ea
Free Shipping & Returns

Key Features

Display Type
LCD
Data Hold
Yes
Instrument Counts
10,000
Includes
9V Battery (Installed), Magne-Grip(TM) Holster with Magnetic Hanging Strap, Spare Fuse, Temperature Adapter, Test Leads with Threaded Alligator Clips, Type K Thermocouple Probe
Standards
IEC 6F22, JIS 006P, NEDA 1604
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
38XR-A
Zoro #
G3333233
UPC #
095969365413
Country of Origin
Taiwan, Province of China

Dimensions

Manufacturers Warranty Length
3 yr
Overall Height
7.7 in
Overall Width
3.6 in
Depth
2.4 in
Battery Size
9V
True RMS Bandwidth
2 kHz

Details

Item
Digital Multimeter
Display Type
LCD
Data Hold
Yes
Instrument Counts
10,000
Includes
9V Battery (Installed), Magne-Grip(TM) Holster with Magnetic Hanging Strap, Spare Fuse, Temperature Adapter, Test Leads with Threaded Alligator Clips, Type K Thermocouple Probe
Standards
IEC 6F22, JIS 006P, NEDA 1604
Auto Power Off
Yes
Data Logging
Yes
Audible Continuity
Yes
Diode Test
Yes
Max. Ohms
40 megohm
AC Response
TRMS
Instrument Safety Rating
CAT IV 600V
Multimeter Style
Full Size - Basic Features
Max. DC Amps
10
Peak Hold
Yes
Series
AMPROBE (R) 38XR-A
Basic DC Accuracy
+/-0.25% of Reading + 5 Digits
Auto Ranging
Yes
Temp. Range
2372 Degrees F
Display
LCD
Max. AC Amps
10
Instrument Frequency Counter Range
0.01 Hz to 10 MHz
Calibration Certificate Included
No
Capacitance Range
400 uF
Duty Cycle
Yes
Intrinsically Safe
No
Removable Screen
No
DC Current Measurement Resolution
1 uA
Frequency Measurement Resolution
100 Hz
Parameters Measured
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature (K)
Waterproof
No
Thermal Imaging
No
Current Leakage Testing
No
Dustproof
No
Minimum Storage Temperature
-4 Degrees F
Minimum DC Voltage Measurement
1 V
Basic AC Current Accuracy
+/- (1.5 % rdg + 20 dgts)
Temperature Measurement Accuracy
-20 Degrees C to 10 Degrees C: +/- (2.0 % rdg + 4 Degrees C ) 10 Degrees C to 200 Degrees C: +/- (1.0 % rdg + 3 Degrees C ) 200 Degrees C to 1300 Degrees C: +/- (2.0 % rdg + 2 Degrees C ) -4 Degrees F to 50 Degrees F: +/- (2.0 % rdg + 8 Degrees F) 50 Degrees F to 400 Degrees F: +/- (1.0 % rdg + 6 Degrees F) 400 Degrees F to 2372 Degrees F: +/- (2.0 % rdg + 4 Degrees F)
Temperature Measurement Resolution
0 Degrees C
Basic DC Voltage Accuracy
+/-0.25% + 5 Digits
Computer Interface Connection Type
None
Maximum AC Voltage Measurement
1,000 V
Resistance Measurement Resolution
1,000 ohm
Bluetooth Compatible
No
Frequency Measurement Accuracy
+/- (0.1% rdg + 5 dgts)
Maximum Frequency Measurement
10 MHz
Maximum Sound Level Measurement
50 dB
DC Voltage Measurement Resolution
1 V
Resistance Measurement Accuracy
+/-2%
Maximum DC Voltage Measurement
1,000 V
Minimum DC Current Measurement
1 uA
Bar Graph Included
Yes
AC Voltage Measurement Resolution
1 V
Maximum DC Current Measurement
10 A
Battery Access
Yes
Maximum Capacitance Measurement
400 uF
Basic DC Current Accuracy
+/- (0.5 % rdg + 10 dgt)
Maximum Storage Temperature
140 Degrees F
Basic AC Voltage Accuracy
+/- (1.2 % rdg + 10 dgts)
Minimum Capacitance Measurement
40 nF
Batteries Included
Yes
Capacitance Measurement Accuracy
+/- (3.0 % rdg + 5 dgts)
Maximum Temperature Measurement
2,372 Degrees F
Fuse Access
Yes
Minimum Frequency Measurement
100 Hz
Minimum/Maximum Memory
Yes
AC Current Measurement Resolution
1 uA
Maximum Operating Temperature
113 Degrees F
Minimum Resistance Measurement
1,000 ohm
Minimum AC Current Measurement
1 uA
AC Response Calculation
TRMS
Minimum AC Voltage Measurement
1 V
Battery Chemistry
Alkaline
Maximum Resistance Measurement
40 megaohm
Minimum Operating Temperature
32 Degrees F
Weight
1 lb
Maximum AC Current Measurement
10 A
Battery Voltage
9V
Capacitance Measurement Resolution
40 nF

Description

Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy +/- (1.2 Percent rdg + 10 dgts), Basic DC Voltage Accuracy +/-0.25 Percent + 5 Digits, Data Hold Yes, Basic DC Current Accuracy +/- (0.5 Percent rdg + 10 dgt), Instrument Safety Rating CAT IV 600V, Maximum AC Voltage Measurement 1,000 V, Maximum DC Voltage Measurement 1,000 V, Instrument Counts 10,000
