Shop AMPROBE

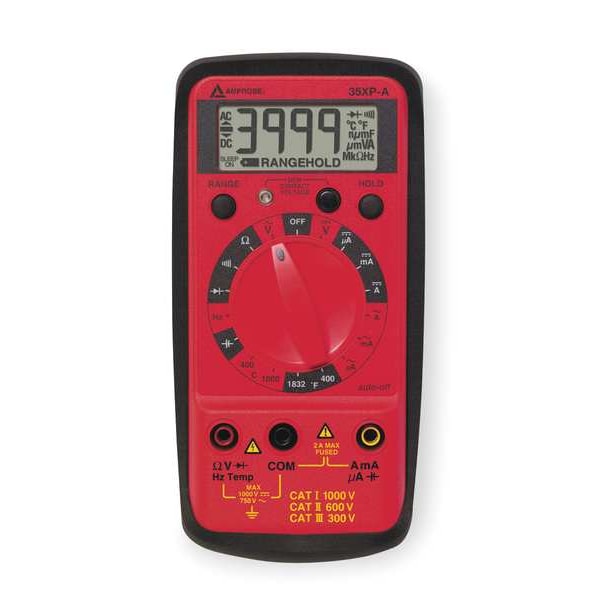

Digital Multimeter, 600 V Max DC, 400 V Max AC, Average, 4,000 Instrument Counts, LCD

  • Mfr # 35XP-A

  • Zoro # G3467816

product price:
$
254.99
/ea
Free Shipping & Returns

Key Features

Display Type
LCD
Data Hold
Yes
Instrument Counts
4,000
Includes
Battery, Carrying Case, Hanging Strap, Test Leads, Temperature Adapter, Type K Thermocouple
Standards
cCSAus, CE, UL
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
35XP-A
Zoro #
G3467816
UPC #
095969365437
Country of Origin
Taiwan, Province of China

Dimensions

Manufacturers Warranty Length
1 yr
Battery Size
9V
Depth
1.25 in
Overall Height
6.1 in
Overall Width
2.83 in

Details

Item
Digital Multimeter
Display Type
LCD
Data Hold
Yes
Instrument Counts
4,000
Includes
Battery, Carrying Case, Hanging Strap, Test Leads, Temperature Adapter, Type K Thermocouple
Standards
cCSAus, CE, UL
Auto Power Off
Yes
Data Logging
No
Audible Continuity
Yes
Diode Test
Yes
Display
LCD
Max. DC Amps
2 A
Capacitance Range
4000 uF
Basic DC Accuracy
+/-0.50% of Reading + 1 Digit
Max. Ohms
40 megohm
Max. AC Amps
2 A
Auto Ranging
Yes
Instrument Safety Rating
CAT II 600V, CAT III 300V
Instrument Frequency Counter Range
1 Hz to 1 Mhz
Series
AMPROBE (R) 35XP-A
AC Response
Average
Multimeter Style
Full Size - Basic Features
Temp. Range
-4 Degrees to 1832 Degrees F
Calibration Certificate Included
No Certification Included
Intrinsically Safe
No
Bluetooth Compatible
No
Battery Voltage
9 V
Current Leakage Testing
No
Basic DC Current Accuracy
+/- (1.0 % rdg + 2 dgt)
Minimum Operating Temperature
32 Degrees F
Removable Screen
No
Minimum DC Voltage Measurement
400 V
AC Response Calculation
Average
AC Current Measurement Resolution
400 uA
Frequency Measurement Resolution
4 kHz
Maximum AC Current Measurement
2 A
Maximum AC Voltage Measurement
600 V
Capacitance Measurement Accuracy
+/- (5.0 % rdg + 5 dgts)
Basic AC Current Accuracy
+/- (1.5 % rdg + 5 dgts)
Minimum Capacitance Measurement
4 nF
Maximum Capacitance Measurement
4,000 uF
Minimum AC Voltage Measurement
400 V
Weight
7.4 oz
Minimum Frequency Measurement
4 kHz
Minimum Resistance Measurement
40 kiloohm
Battery Chemistry
Alkaline
Minimum DC Current Measurement
4 uA
Maximum Temperature Measurement
1,832 Degrees F
Frequency Measurement Accuracy
+/- (0.1 % rdg + 3 dgts)
Maximum DC Current Measurement
2 A
Parameters Measured
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature
Resistance Measurement Resolution
40 kiloohm
Computer Interface Connection Type
None
Resistance Measurement Accuracy
+/-2%
Capacitance Measurement Resolution
4 nF
Maximum DC Voltage Measurement
600 V
AC Voltage Measurement Resolution
400 V
Dustproof
No
Battery Access
Yes
Maximum Frequency Measurement
1 MHz
Minimum Temperature Measurement
-4 Degrees F
Maximum Resistance Measurement
40 megaohm
Temperature Measurement Accuracy
+/- (1.0 % rdg + 3 Degrees C)
Minimum Storage Temperature
-4 Degrees F
Minimum AC Current Measurement
4 uA
Fuse Access
Yes
DC Current Measurement Resolution
4 uA
Maximum Storage Temperature
140 Degrees F
Batteries Included
Yes
Maximum Operating Temperature
122 Degrees F
Basic DC Voltage Accuracy
+/-0.50% + 1 Digit
Thermal Imaging
No
DC Voltage Measurement Resolution
400 V
Waterproof
No
Basic AC Voltage Accuracy
+/- (1.5 % rdg + 5 dgts)
Temperature Types Measured
Temperature Degrees C, Temperature Degrees F
CAT Safety Rating
CAT II 600V, CAT III 300V
Includes Auto Sensing
No Auto Sensing Included
Current Units
A, mA
Special Features
0.1 mA Resolution for Flame Sensor Testing, Capacitance for Motor Run/Start Test, Data Hold Freezes Display, Frequency to 1 MHz, Low Battery Indication, Magne-Grip(TM) Holster, Resistance to 40 megaohm, Temperature Measurement Capability to 1,000 Degrees C/1832 Degrees F (Type K Thermocouple Included), Voltect(TM) Non-Contact Voltage Detector
IP Rating
Not Rated

Description

Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy +/- (1.5 Percent rdg + 5 dgts), Basic DC Voltage Accuracy +/-0.50 Percent + 1 Digit, Data Hold Yes, Basic DC Current Accuracy +/- (1.0 Percent rdg + 2 dgt), Instrument Safety Rating CAT II 600V, CAT III 300V, Maximum AC Voltage Measurement 600 V, Maximum DC Voltage Measurement 600 V, Instrument Counts 4,000
