- MFR #
- FLUKE-87-5/E2 CWG
- Zoro #
- G8201873
- UPC #
- -
- Country of Origin
- United States
- Item
- Digital Multimeter
- Display Type
- Backlit LCD
- Data Hold
- Yes
- Instrument Counts
- 6,000/19,999 (Depending on Mode)
- Includes

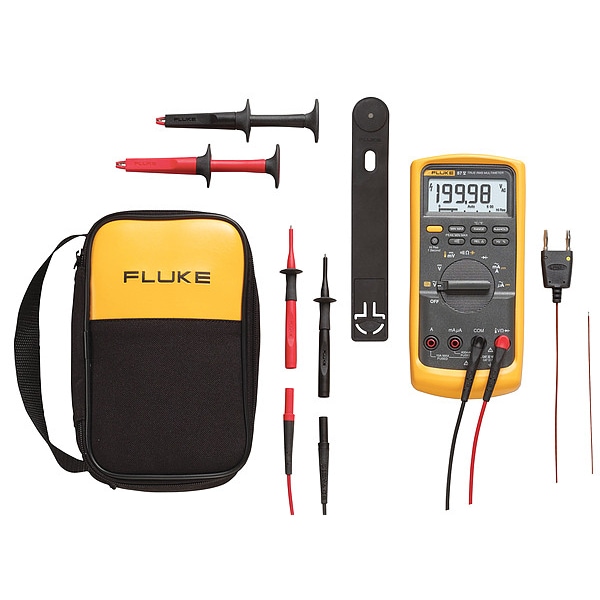

- Temperature Probe (80BK), Battery, Alligator Clips (AC175 ), Holster with Tilt-Leg, Test Lead Storage, Test Leads (TL175)
- Standards
- ANSI/ISA S82.01, CE, EN61010-1, SA, UL
- Auto Power Off
- Yes
- Data Logging
- Yes
- Audible Continuity
- Yes
- Diode Test
- Yes
- NIST Certification By
- Techni-Tool
- Instrument Safety Rating
- CAT IV 600V
- Display
- Backlit LCD
- AC Response
- TRMS
- Temp. Range
- -328 Degrees to 1994 Degrees F
- Series
- FLUKE (R) Fluke-87-V/E2
- Auto Ranging
- Yes
- Basic DC Accuracy
- +/-0.05% of Reading + 1 Digit
- Max. DC Amps
- 10 A
- Duty Cycle
- Duty Cycle Test Included
- Calibration Certificate Included
- Traceable without Data
- Instrument Frequency Counter Range
- 0.5 Hz to 200 kHz
- Max. Ohms
- 50 megohm
- Multimeter Style
- Full Size - General Features
- Max. AC Amps
- 10:00 AM
- Peak Hold
- Yes
- Capacitance Range
- 1 nF to 9999 uF
- Intrinsically Safe
- No
- Maximum Storage Temperature
- 140 Degrees F
- NIST Certification By Manufacturer
- Techni-Tool
- Current Leakage Testing
- No
- Batteries Included
- Yes
- Basic DC Voltage Accuracy
- +/-0.05% + 1 Digit
- Battery Chemistry
- Alkaline
- Weight
- 624 g
- Bluetooth Compatible
- No
- Frequency Measurement Resolution
- 0.5 Hz
- Battery Voltage
- 9 V
- Software Included
- No
- Removable Screen
- No
- Minimum/Maximum Memory
- Min/Max
- Min-Max-Avg Button Included
- Yes
- Resistance Measurement Accuracy
- +/-0.2%
- Minimum AC Voltage Measurement
- 0 V
- Minimum Temperature Measurement
- -328 Degrees F
- Maximum Frequency Measurement
- 200 kHz
- Minimum AC Current Measurement
- 0 A
- Minimum DC Current Measurement
- 0 A
- Maximum Operating Temperature
- 131 Degrees F
- Maximum Temperature Measurement
- 1,994 Degrees F
- AC Response Calculation
- TRMS
- Capacitance Measurement Resolution
- 1 nF
- Dustproof
- No
- Basic AC Voltage Accuracy
- +/-(0.7% + 2)
- Frequency Measurement Accuracy
- +/-(0.005% + 1)
- Waterproof
- No
- Bar Graph Included
- Yes
- Maximum Capacitance Measurement
- 9,999 uF
- Minimum Storage Temperature
- -40 Degrees F
- Maximum DC Current Measurement
- 10 A
- Basic DC Current Accuracy
- +/-(0.2% + 2)
- Temperature Measurement Accuracy
- +/-2.00%
- Maximum AC Voltage Measurement
- 1,000 V
- Minimum Frequency Measurement
- 0.5 Hz
- Minimum DC Voltage Measurement
- 0 V
- Battery Access
- Yes
- Thermal Imaging
- No
- Minimum Operating Temperature
- -4 Degrees F
- Parameters Measured
- AC Current, AC Voltage, Capacitance, Conductance, DC Current, DC Voltage, Frequency, Resistance, Temperature
- Maximum Resistance Measurement
- 50 megaohm
- Computer Interface Connection Type
- None
- Basic AC Current Accuracy
- +/-(1.0% + 2)
- Maximum DC Voltage Measurement
- 1,000 V
- Maximum AC Current Measurement
- 10 A
- Minimum Capacitance Measurement
- 1 nF
- Capacitance Measurement Accuracy
- +/-(1% + 2)
- Includes Auto Sensing
- No Auto Sensing Included
- Current Units
- A, mA
- CAT Safety Rating
- CAT III 1000V, CAT IV 600V
- IP Rating
- Not Rated
- Temperature Types Measured
- Temperature Degrees C, Temperature Degrees F
- Special Features
- Adjustable Speed Motor Drive Test Function
