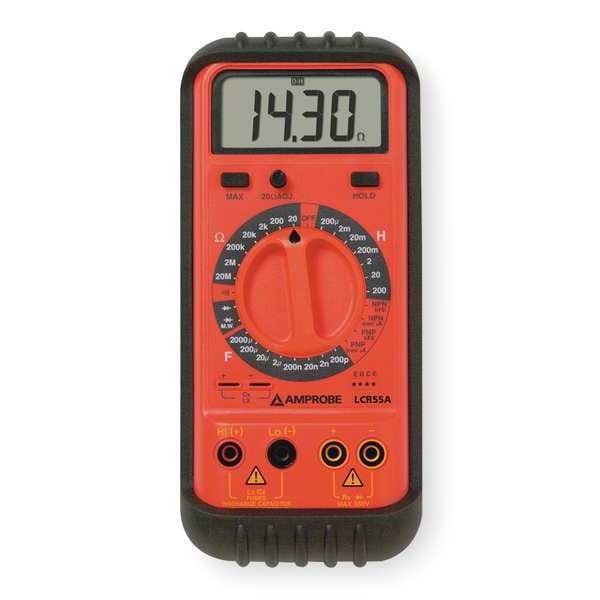

Amprobe Handheld Component Tester LCR55A - main

Handheld Component Tester

  • Mfr # LCR55A

  • Zoro # G0708592

product price: $386.99
/ea
Free Shipping & Returns

Key Features

Inductance Range
200 uH to 200 H
Inductance Accuracy
Varies With Range
Display
LCD
Capacitance Range
20 pF to 20 mF
Includes
Test Leads with Alligator Clips
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LCR55A
Zoro #
G0708592
UPC #
095969414753
Country of Origin
Taiwan, Province of China

Dimensions

Manufacturers Warranty Length
1 yr
Battery Size
9V

Details

Item
LCR Meter
Inductance Range
200 uH to 200 H
Inductance Accuracy
Varies With Range
Display
LCD
Capacitance Range
20 pF to 20 mF
Includes
Test Leads with Alligator Clips
Capacitance Accuracy
+/-1% Reading + 3 Digits (200 pF to 200 nF), +/-2% Reading + 3 Digits (2 uF to 200 uF Range), +/-3% Reading + 3 Digits (2000uF range: Less Than or Equal To 1000 uF), +/-5% Reading + 5 Digits ( Greater Than1000 uF)
Resistance Range (Ohms)
20 ohms to 20 M
Resistance Accuracy
+/-0.5%rdg +1 Digits (2 k to 2 megaohm Range), +/-0.5%rdg +3 Digits (200 ohm Range), +/-1.2%rdg (0 ohm Range), +/-2%rdg +2 Digits (20 megaohm Range)
Auto Power Off
Yes
Diode Test
Yes
Test Frequencies
10 Hz, 100 Hz, 1,000 Hz
Counts
1999
Battery Type
9V
Audible Continuity
Yes
Product Type
LCR Meter
Battery Voltage
9 V
Capacitance Measurement - Minimum
200 pF
Battery Chemistry
Alkaline
Standards
CE
Resistance Measurement - Minimum
20 ohm
Includes Batteries
Batteries Included
Inductance Measurement - Minimum
200 uH
Inductance Measurement - Maximum
200 H
Resistance Measurement - Maximum
20 megaohm
Capacitance Measurement - Maximum
2 mF
Digital Display Screen Type
LCD

Description

LCR Meter, Inductance Range 200 uH to 200 H, Inductance Accuracy Varies With Range, Capacitance Range 20 pF to 20 mF, Capacitance Accuracy +/-1 Percent Reading + 3 Digits (200 pF to 200 nF), +/-2 Percent Reading + 3 Digits (2 uF to 200 uF Range), +/-3 Percent Reading + 3 Digits (2000uF range: Less Than or Equal To 1000 uF), +/-5 Percent Reading + 5 Digits ( greater than 1000 uF), Resistance Range (Ohms) 20 ohms to 20 M

Restrictions

Hazardous material
