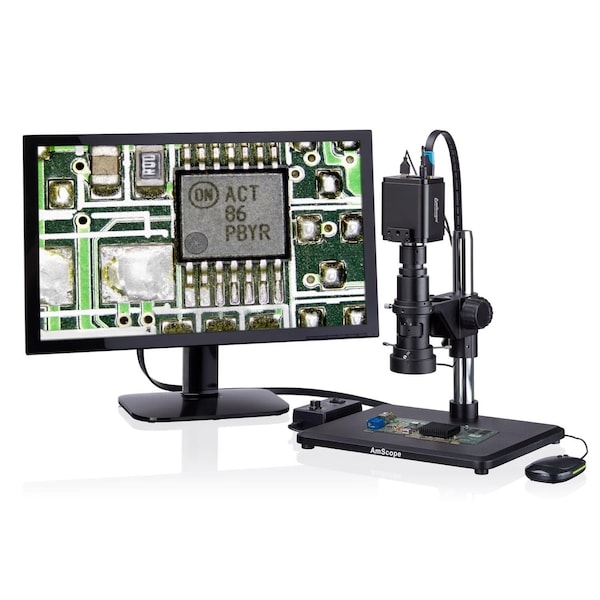

0.7X-5X Zoom 4K 60fps 8MP HDMI Digital Inspection Microscope With Ring Light

  • Mfr # H800-96S-HD48

  • Zoro # G504417226


product price: $2,065.99
/ea
Free Shipping & Returns

Key Features

Includes
Microscope, Power Cord, Camera, User Manual
Power Supply
110V, Wide Band
Length
20
Optical Magnification Range
0.7X-5X
Light Source
LED
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
H800-96S-HD48
Zoro #
G504417226
UPC #
840979136689
Country of Origin
China

Dimensions

Length
20
Width
20
Height
10

Details

Item
Digital Microscope
Includes
Microscope, Power Cord, Camera, User Manual
Power Supply
110V, Wide Band
Optical Magnification Range
0.7X-5X
Light Source
LED
Megapixels
2160p
Magnification - Objective Lens
0.7X-5.0X
Head Type
Digital

Description

This is a highly-versatile inspection system well suited for production lines & laboratories alike. The ultra-sharp 0.7X-5X zoom lens produces highly-corrected, color-accurate images. Using a single objective ensures maximum depth-of-field & even focus, & is recommended over stereo microscopes when producing photos & video are the main goals.


The 4K camera produces stunning, ultra-high definition video & photos. Operating as a Stand-alone system, the camera can stream 4K video at 60fps over HDMI. A built-in software interface provides tools for image-adjustment & measurement -- perfect for QC workflows & laboratory growth analysis. Videos & photos can be recorded to SecureDigital media or USB storage devices.


The functionality doesn't stop there. The camera can be integrated into your computer network over LAN or Wi-fi, with full-featured microscopy software to expand the camera's abilities. Features include image-stitching & focus-stacking, time-lapse capture, segmentation & counting tools, & much more. The camera can be accessed over a network for remote capture during isolated experiments or long-term monitoring.


A 96-LED variable-intensity Ring Light provides bright, low-heat, even illumination. Designed specifically for this lens, the Ring Light evenly distributes light for optimal results.


Features:

  • 0.7X-5.0X zoom objective

  • C-mount lens

  • Long working distance

  • Sharp images over a super wide field view

  • Stable, all-metal pillar-Stand

  • Cool, even 96-LED lighting

  • 4K multi-function camera with built-in recording

  • Microscope Specifications :
  • Zoom microscope objective: 0.7X-5.0X

  • Mount: 0.4X C-mount

  • Working distance: 4-1/8" (105mm)

  • Metal Stand dimension: 13" x 10"

  • Pillar: 11" (280mm) long

  • Packing List :
  • One monocular zoom microscope

  • One focusing rack

  • One pillar plate Stand

  • One dust cover

  • One 96-LED Ring Light

  • One lighting control module

  • One camera body

  • One HDMI camera

  • One USB mouse

  • One USB Wi-fi dongle

  • One 16GB SD card

  • HDMI cable

  • One AC adapter for camera

    • The ultra-sharp 0.7X-5X zoom lens produces highly-corrected, color-accurate images.
    • The 4K camera produces stunning, ultra-high definition video and photos.
    • With LAN and Wi-fi connectivity, the camera can be accessed over a network for remote control.
    • A 96-LED variable-intensity ring-light provides bright, low-heat, even illumination.
    • Using a single objective ensures maximum depth-of-field and even focus, and is recommended over stereo microscopes when producing photos and video are the main goals.
