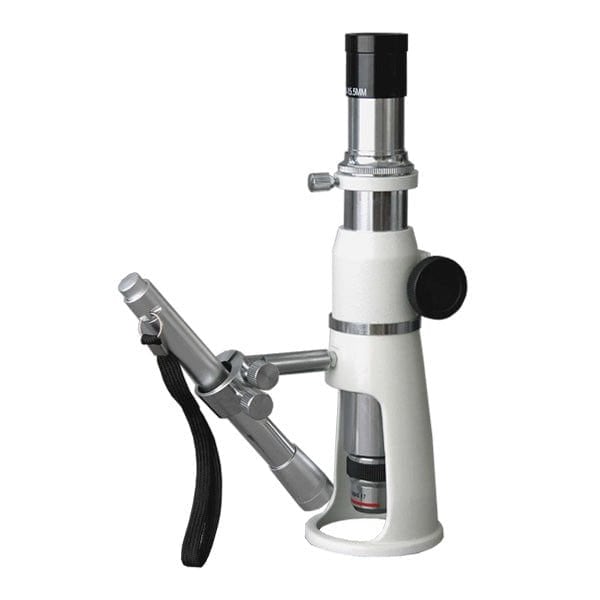

20X-50X-100X Stand / Shop / Measuring Microscope, Pen Light

This is a br& new advanced shop measuring microscope that offers 20X, 50X & 100X magnification settings. Combining compact design & precision optics, it is an ideal shop tool. This microscope has exceptional lens & gives clear images With flat field of view. WF10X eyepiece With direct reading reticle (no calibration required) shows metric scales & allows for precise measurement. Adjustable penlight makes it versatile. This microscope system offers high quality clear images & unbeatable low price.

Features :

• An advanced shop measuring microscope offering three magnification settings


• 20X, 50X & 100X magnification settings.


• Built-in scale showing millimeters (0.1mm Graduation).


• Adjustable pen light.


• Full metal body.


• Manufactured under ISO 9001 Quality Control Standard.

Specifications :

• Total Magnification: 20X, 50X & 100X


• Power of Eyepiece: 10X


• Power of Objectives: 2X, 5X & 10X


• Reading Graduation: 0.05mm, 0.02mm & 0.01mm under 20X, 50X & 100X, respectively


• Field of View: 9mm (under 20X)


• Focusing Range: 30mm


• Diameter of Viewing Field: 17mm


• Reticle of Eyepiece: 0.1-micrometer


• Illumination System: pen lamp With two AA batteries


• Overall Size: 65mm (2-1/2") base diameter x 250mm (9-7/8") height


• Shipping Weight: 8-lbs

Shipping List :

• One Shop Microscope Body


• One Widefield 10X Eyepiece With Reticle Graduated in 100-Units


• One 2X Achromatic Objective


• One 5X Achromatic Objective


• One 10X Achromatic Objective


• One Pen Light


• User's Manual Download


• Shipping Weight: 8-lbs

• 20X, 50X & 100X high quality widefield shop microscope
• Precise optics with measuring reticle offer clear images
• Combines compact design and precise optics together
• Portable pen light powered by batteries
