3.5X-90X Digital Zoom Stereo Microscope w 4-Zone 144-LED Light, 5MP USB Camera
Mfr # SM-1TSZ-144A-5M
Zoro # G904418106
Key Features
- Width 13
- Height 15
- Length 17
- Includes Microscope, Power Cord, Camera, User Manual
- Magnification - Eyepiece Lens 10X
Product Information
- Brand Amscope
- MFR # SM-1TSZ-144A-5M
- Zoro # G904418106
- UPC # 608729743941
- Country of Origin China
- Category Stereo Microscopes
Dimensions
Width | 13 |
Height | 15 |
Length | 17 |
Details
Description

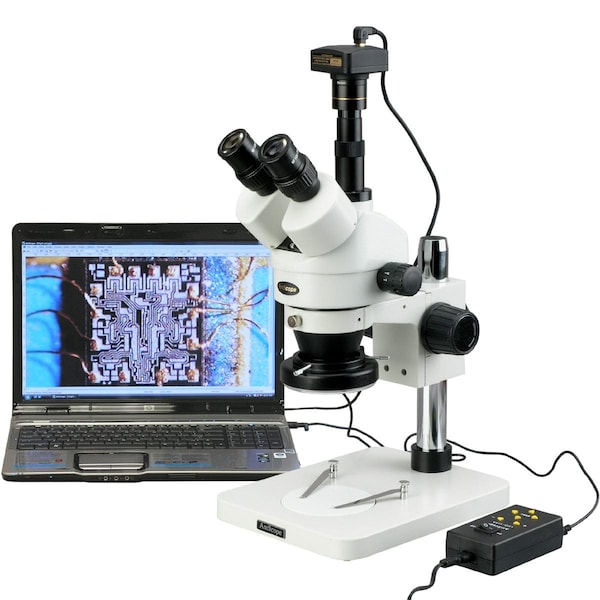

This trinocular stereo microscope comes with a 144-LED 4-light-zone ring light & a 5MP USB digital camera. The microscope has a super widefield optical system that provides a large zoom magnification power (26:1) & a large working distance (8", 200mm). The trinocular port uses the third port for camera capabilities, or a third party to view as well, giving you the remaining two ports to view your specimen. The 144-LED ring light is lighting-direction changeable & lighting-intensity adjustable, providing cool, even & bright LED illumination. It features a separate control box allowing you to turn on/off each portion of the 4 light zones individually as well as changing the lighting direction so you may obtain the best images for your stereo microscope.
The digital camera captures still images & video, & allows you to view a live stream on your PC. with software available for Windows, Mac, & Linux, it's a multi-platform imaging solution. The included Windows software offers image-development & measurement tools, as well as advanced compositing features such as image-stitching & extended-depth-of-focus. Independent preview & capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac & Linux, there is a lite version with limited processing features. This microscopy system is an ideal instrument for manufacturing engineers, lab technicians, gemologists, circuit board inspectors, & anyone in electronic & semiconductor industries. It is also the right microscope for biological laboratory applications that require low heat release.
Packing List:
- One Trinocular Stereo Zoom Head
- One Pair of Super Widefield 10X Eyepieces
- One 0.5X Barlow Lens
- One 2.0X Barlow Lens
- One 144-LED Ring Illuminator with 4 Light Zones
- One Pillar Table Stand
- One Focusing Rack
- One Round Plastic Plate
- One Pair of Eye-Guards
- One Pair of Clips
- One Dust Cover
- User's Manual Download
- One 5MP USB 2 Digital Camera with 0.5X Reduction Lens
- One 6' (1.8m) USB Cable
- One CD with Camera Software & Driver
- Two Adapter Sleeves (23.2mm-30mm & 23.2mm-30.5mm)
- Package Dimension: 17" x 14" x 14.5"
- Shipping Weight: 20 lbs
Restrictions
- WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
