3.5X-90X Zoom Stereo Microscope w 4-Zone 144-LED Light +3MP Digital USB Camera (Discontinued)

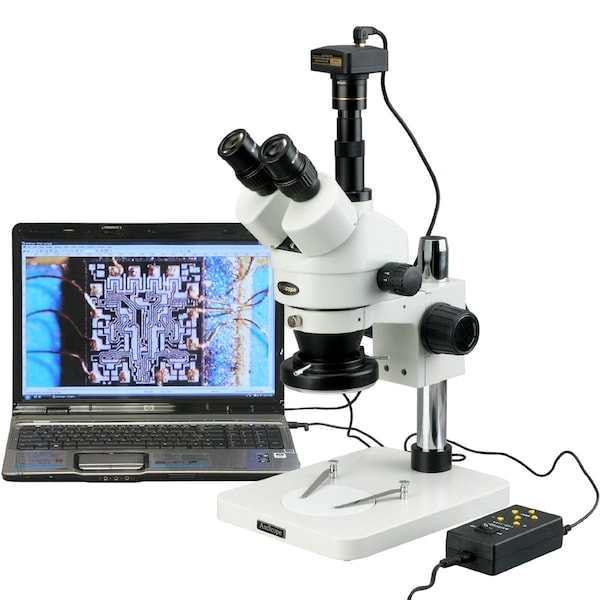

This trinocular stereo microscope comes with a 144-LED 4-light-zone ring light & a 3MP USB digital camera. The microscope has a super widefield optical system that provides a large zoom magnification power (26:1) & a large working distance (8", 200mm). The trinocular port uses the third port for camera capabilities, or a third party to view as well, giving you the remaining two ports to view your specimen. The 144-LED ring light is lighting-direction changeable & lighting-intensity adjustable, providing cool, even & bright LED illumination. It features a separate control box allowing you to turn on/off each portion of the 4 light zones individually as well as changing the lighting direction so you may obtain the best images for your stereo microscope.

The digital camera captures still images & video, & allows you to view a live stream on your PC. with software available for Windows, Mac, & Linux, it's a multi-platform imaging solution. The included Windows software offers image-development & measurement tools, as well as advanced compositing features such as image-stitching & extended-depth-of-focus. Independent preview & capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac & Linux, there is a lite version with limited processing features.

This microscopy system is an ideal instrument for manufacturing engineers, lab technicians, gemologists, circuit board inspectors, & anyone in electronic & semiconductor industries. It is also the right microscope for biological laboratory applications that require low heat release.

Packing List:

• One Trinocular Stereo Zoom Head


• One Pair of Super Widefield 10X Eyepieces


• One 0.5X Barlow Lens


• One 2.0X Barlow Lens


• One 144-LED Ring Illuminator with 4 Light Zones


• One Pillar Table Stand


• One Focusing Rack


• One Round Plastic Plate


• One Pair of Eye-Guards


• One Pair of Clips


• One Dust Cover


• User's Manual Download


• One 3MP USB 2 Digital Camera with 0.5X Reduction Lens


• One 6' (1.8m) USB Cable


• One CD with Camera Software & Driver


• Two Adapter Sleeves (23.2mm-30mm & 23.2mm-30.5mm)


• Package Dimension: 17" x 14" x 14.5"


• Shipping Weight: 20 lbs
