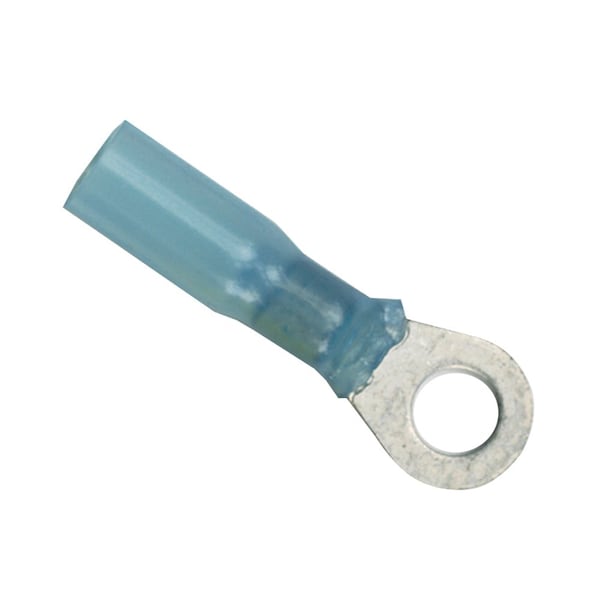

16-14 Gauge - 5/16" Heat Shrink Ring Terminal - 3-Pack
Mfr # 311503
Zoro # G202942501
product price:
$
3.15
/ea
Sold in multiples of 3 for $9.45
Key Features
Standards
UL 486A and CSA Listed
Insulation Type
Cross-Linked Polyolefin
Stud Size
5/16 in
Contact Material
Copper
Minimum Operating Temperature
40 Degrees C
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 311503
- Zoro #
- G202942501
- UPC #
- 091887313147
- Country of Origin
- United States
- Item
- Ring Terminal
- Standards
- UL 486A and CSA Listed
- Insulation Type
- Cross-Linked Polyolefin
- Contact Material
- Copper
- Minimum Operating Temperature
- 40 Degrees C
- Maximum Operating Temperature
- 110 Degrees C
- Terminal Shape
- Standard Ring Tongue
- Insulation Color
- Blue
- Insulation Coverage
- Partial Coverage
Description
Wire Range:16-14
Screw Size:5/16"
Quantity: 3
Product Features:
- Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC
- Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief
- Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage
- UL Listed and CSA Recognized
- Highest shrink ratio - shrinks to 1/3 original size
- Shrinks at 257° F/125° C
- Operating temperature range 40° C to 110° C
- ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing
- Shrinks to form a water tight seal and the ultimate vibration and strain relief
- Tinned for corrosion resistance
- Pure copper for maximum current flow
- Brazed seam for maximum strength
