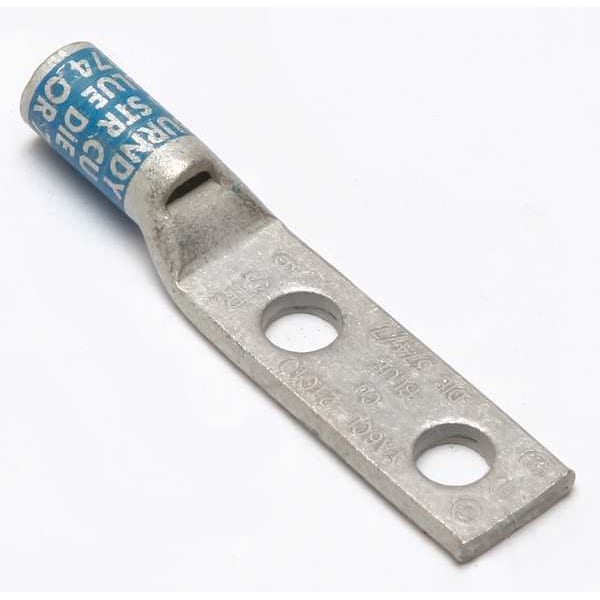

Two-Hole Compression Lug, 6 AWG Max, #10 Stud, Standard Barrel, Copper, Blue
Mfr # YA6CL2TC10
Zoro # G4652602
product price:Â $7.99
/eaKey Features
For Wire Size
6 AWG
For Conductor Material
Copper
For Stud Size
#10
Material
Copper
Barrel Size
Standard
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- YA6CL2TC10
- Zoro #
- G4652602
- UPC #
- 781810559543
- Country of Origin
- United States
Dimensions
- For Wire Size
- 6 AWG
- For Stud Size
- #10
- Barrel Size
- Standard
- Tongue Width
- 0.42 in
- Width
- 0.42"
- Cable Size
- 6 AWG
- Barrel Length
- Short
- Length
- 1.94"
- Overall Width
- 0.42 in
- Overall Length
- 1.94 in
- Length (Straight Wireway)
- 1.94 in
- Tongue Length
- 0.52 in
- Tongue Thickness
- 0.09 in
- Barrel Outside Diameter
- 0.29 in
- Strip Length
- 5/8 in
- Hole Size
- 0.21 in
- For Stranded Copper Wire Size - Minimum
- 6 AWG
- For Stranded Copper Wire Size - Maximum
- 6 AWG
- Dimension - Stud Size inch
- #10
- Dimension - Strip Length inch
- 5/8 in
- Conductor - Copper Solid Size
- 6 AWG
- Dimension - Length Overall inch
- 1.94 in
- Dimension - Bolt Size inch
- 0.21
- Dimension - N inch
- 0.25 in
- Dimension - B Length inch
- 0.54 in
- Dimension - Hole Size fraction
- #8-#10
- Dimension - B Length fraction
- 9/16 in
- Dimension - Stud Size fraction
- #8-#10
- Dimension - Bolt Size fraction
- #8-#10
- Conductor Size
- 6 AWG
- Dimension - L Length Overall mm
- 49 mm
- Dimension - Hole Size inch
- 0.21 in
- Dimension - Pad Width inch
- 0.42 in
- Dimension - Bolt Hole Size inch
- 0.20 in
- Conductor - Copper Str Size Range
- 6 AWG
- Dimension - Z inch
- 0.27 in
- Dimension - Hole Size mm
- 5 mm
- Dimension - Outside Diameter inch
- 0.29 in
- Conductor - Copper Str Size
- 6 AWG
Description
Two-Hole Lug Compression Connector, Barrel Size Standard, Color Code Blue, Die Code 374, 7, Tongue Angle Straight, Tongue Width 0.42 in, For Conductor Material Copper, For Stud Size #10, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 6 AWG, Inspection Hole Yes, Hole Center to Center 0.625 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV AC, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed
