  11. Adhesive Lined Heat Shrink Tube, 3:1 I.D. Shrink Ratio, Black, 3 in
Ancor Adhesive Lined Heat Shrink Tube, 3:1 I.D. Shrink Ratio, Black, 3 in 303103 - main

Adhesive Lined Heat Shrink Tube, 3:1 I.D. Shrink Ratio, Black, 3 in

  • Mfr # 303103

  • Zoro # G003046460

product price: $3.15
/ea
Sold in multiples of 3 for $9.45

Key Features

Shrink Ratio
3:1
Shrink Tubing I.D. After Shrinking
5/64 in
Material
Cross-Linked Polyolefin
Use with Wire Size
16 to 10 AWG
Temp. Range
-40° to 110°C
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
303103
Zoro #
G003046460
UPC #
091887302264
Country of Origin
China

Dimensions

Length
3 in
Use with Wire Size
16 to 10 AWG

Details

Item
Adhesive Lined Heat Shrink Tube
Shrink Ratio
3:1
Shrink Tubing I.D. After Shrinking
5/64 in
Material
Cross-Linked Polyolefin
Color
Black
Temp. Range
-40° to 110°C
Min. Shrink Temp.
125°F
Shrink Tubing I.D. Before Shrinking
1/4 in

Description

Adhesive Lined Heat Shrink Tubing (ALT) - 1/4" x 3" - 3-Pack - Black

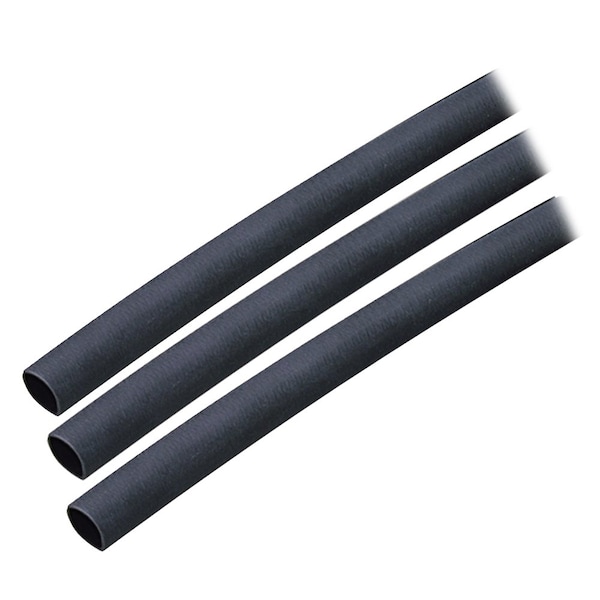

Package of 3 Black 3"(7.6cm) long sections with a 1/4"(6.4mm) diameter that shrinks to 5/64"(2mm)
Wire Range: 16-10 AWG
Features:
  • Cross Linked polyolefin tubing is much stronger than PVC tubing and
    will not burn like PVC
  • Heat activated adhesive lining provides impervious seal to salt water,
    oil, acids, and sunlight as well as providing strain relief
  • Highest shrink ratio - shrinks to 1/3 original size
  • Shrinks at 257°F / 125°C
  • Operating temperature range of -40°C to 110°C
  • UL 224
