  11. Adhesive Lined Heat Shrink Tube, 3:1 I.D. Shrink Ratio, Red, 3 in

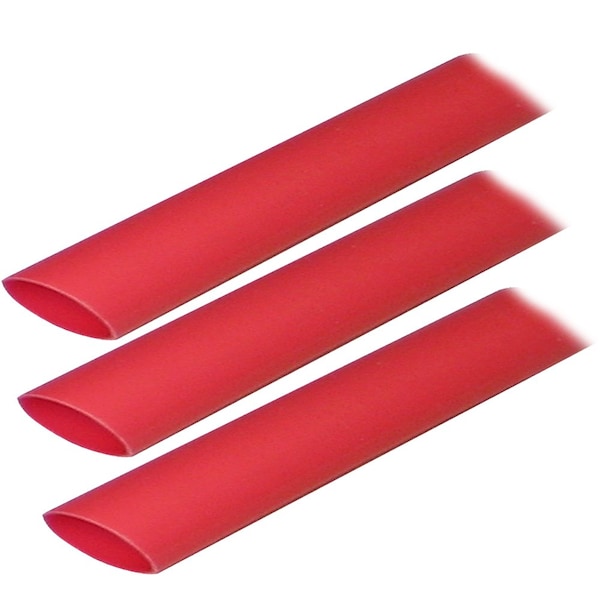

Ancor Adhesive Lined Heat Shrink Tube, 3:1 I.D. Shrink Ratio, Red, 3 in 306603 - main

Adhesive Lined Heat Shrink Tube, 3:1 I.D. Shrink Ratio, Red, 3 in

  • Mfr # 306603

  • Zoro # G003046446

product price: $6.49
/ea
Sold in multiples of 2 for $12.98

Key Features

Shrink Ratio
3:1
Shrink Tubing I.D. After Shrinking
1/4 in
Material
Cross-Linked Polyolefin
Length
3 in
Use with Wire Size
8 to 2/0 AWG
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
306603
Zoro #
G003046446
UPC #
91887308174
Country of Origin
China

Dimensions

Length
3 in
Use with Wire Size
8 to 2/0 AWG

Details

Item
Adhesive Lined Heat Shrink Tube
Shrink Ratio
3:1
Shrink Tubing I.D. After Shrinking
1/4 in
Material
Cross-Linked Polyolefin
Color
Red
Temp. Range
-40° to 110°C
Min. Shrink Temp.
125°F
Shrink Tubing I.D. Before Shrinking
3/4 in

Description

Adhesive Lined Heat Shrink Tubing (ALT) - 3/4" x 3" - 3-Pack - Red
Package of 3 Red 3"(7.6cm) long sections with a 3/4"(19mm) diameter that shrinks to 1/4"(6.4mm)
Wire Range: 8-2/0 AWG
Features:
  • Cross Linked polyolefin tubing is much stronger than PVC tubing and
    will not burn like PVC
  • Heat activated adhesive lining provides impervious seal to salt water,
    oil, acids, and sunlight as well as providing strain relief
  • Highest shrink ratio - shrinks to 1/3 original size
  • Shrinks at 257°F / 125°C
  • Operating temperature range of -40°C to 110°C
  • UL 224

Restrictions

WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
