1. Home
  2. Electronics
  3. Data & Communication
  4. Voice & Data Communication Cabinets
  5. Cabinet, 19in W, 42 in D, 78 in H, 42U, Steel

This item is Discontinued.

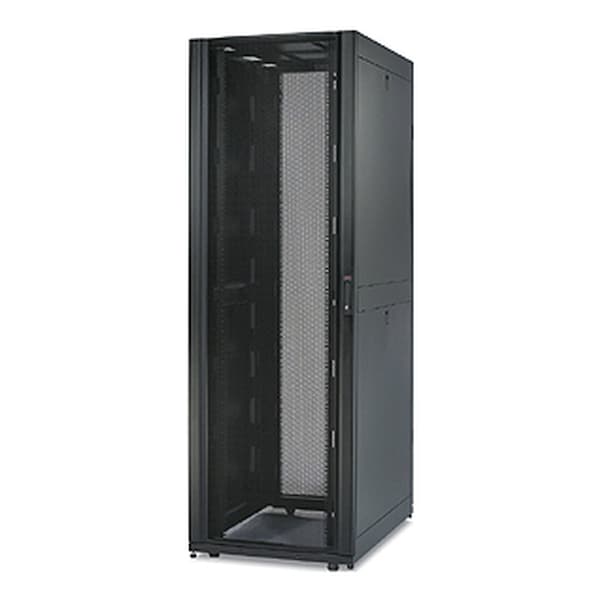

Apc Cabinet, 19in W, 42 in D, 78 in H, 42U, Steel AR3150

Cabinet, 19in W, 42 in D, 78 in H, 42U, Steel (Discontinued)

  • Mfr # AR3150
  • Zoro # G9858502
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
AR3150
Zoro #
G9858502
UPC #
731304236375
Country of Origin
United States

Dimensions

Height
78.39 in
Width
29.53 in
Depth
42.13 in
Overall Width
29 1/2 in
Overall Height
78 3/8 in
Rack Width
19"
Rack Height
42U
Manufacturers Warranty Length
5 yr
Overall Depth
42 1/8 in

Details

Item
Data/Communication Cabinet
Mounting Style
Free-Standing
Load Rating
3000 lbs.
Rack Units
42
Finish
Powder Coated
Material
Steel
Includes
Documentation CD, Keys, Doors, Leveling Feet, Casters, Side Panels
Product Type
Rack Enclosure
Standards
EIA-310E, UL 2416, UL 60950-1
Color
Black
Mounting Mode
not rack-mountable
Permanent Permissible Load
2250 lb(US) dynamic || 3750 lb(US) static
Number Of Rack Unit
42U
Marking
14 gauge EIA mounting rail || 16 gauge front door || 16 gauge post || 16 gauge rear door || 18 gauge roof || 18 gauge side panels
Product Or Component Type
rack enclosure
Provided Equipment
Baying hardware || Key(s) || Keyed-alike doors and side panels || Leveling feet || Mounting Hardware || Pre-installed casters || Side Panels
Certifications & Standards
Free of Substances of Very High Concern above the threshold
Dynamic/Rolling Weight Capacity
2250 lb
Package Contents
NetShelter SX 42U Rack Enclosure With Sides, Casters, Doors, Ground Studs, Installation Guide, Leveling feet, Mounting Hardware, Roof, Side Panels
Static/Stationary Weight Capacity
3000 lb
Product Name
NetShelter SX Rack Enclosure With Sides
Additional Information
Adjustable Front Vertical Mounting Rail, Adjustable mounting depth, Cable Access, Deep form factor (42"/1070mm), Door ventilation exceeds 830 in2 (5355 cm2), Expanded Cable Management, Facilitates overhead cable management, Facilitates overhead power distribution, Facilitates rear/vertical cable management, Mounts two APC metered PDUs in one rear channel, Multi-vendor equipment compatibility, Numbered U positions, Optimized depth, Protective grounding provisions, Provides Mounting Option for PDUs, Provides security between enclosures when bayed together, Quick release doors, Quick release side panels, Removable doors and side panels, Reversible doors, Rolls through a 2 meter doorway, Ships fully assembled, Split rear doors, Tool-less mounting, UBC Zone 4 stabilization provisions, Ventilated Doors with Scalable Cooling Options, Vertical Mounting Rails with square holes, Wide form factor (29.5"/750mm)
Product Color
Black
Rail Material Gauge
14
Application/Usage
Blade Server, Converged Infrastructure
Roof/Top Material Gauge
18
Side Panel Material Gauge
18
Product Line
NetShelter
Door Material Gauge
18
Includes Mounting Hardware
Yes
Overall Load Capacity
3,750 lb

Description

Data/Communication Cabinet, Product Type Rack Enclosure, Color Black, Finish Powder Coated, Material Steel, Mounting Location Free-Standing, Overall Height 78 3/8 in, Overall Width 29 1/2 in, Overall Depth 42 1/8 in, Overall Load Capacity 3,750 lb, Rack Units 42, Includes Documentation CD, Keys, Doors, Leveling Feet, Casters, Side Panels, Includes Mounting Hardware Yes, Manufacturers Warranty Length 5 yr, Standards EIA-310E, UL 2416, UL 60950-1
