  11. Power Strip, Surge, 5-20R, L5-20P, 10 ft., Black

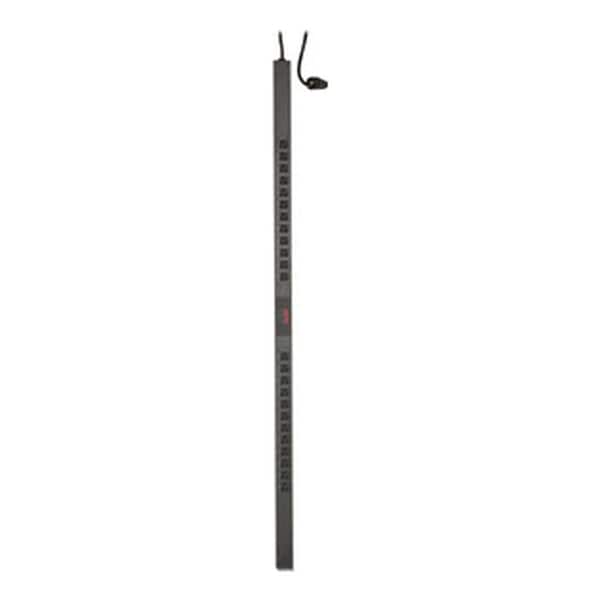

Apc Power Strip, Surge, 5-20R, L5-20P, 10 ft., Black AP7530 - main

Power Strip, Surge, 5-20R, L5-20P, 10 ft., Black

  • Mfr # AP7530

  • Zoro # G6769831

product price: $422.99
/ea
Free Shipping & Returns

Key Features

Type
Surge
Receptacle Configuration
5-20R
Plug Configuration
L5-20P
Cord Length
10 ft.
Color
Black
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AP7530
Zoro #
G6769831
UPC #
731304207962
Country of Origin
India

Dimensions

Cord Length
10 ft.
Width
2 13/64 in
Length
63 3/4 in
Height
1 3/4 in
Dimensions
4.4 cm D x 161.9 cm H x 5.6 cm W
Depth
4.4 cm
Length (Straight Wireway)
63 3/4 in
Overall Width
2 1/4 in
Overall Height
63 3/4 in
Overall Length
63 3/4 in
Manufacturers Warranty Length
2 yr

Details

Item
Power Strip
Type
Surge
Receptacle Configuration
5-20R
Plug Configuration
L5-20P
Color
Black
Standards
CSA, cUL Listed, FCC Part 15 Class A, ICES-003, METI Denan, UL 60950, UL Listed, VCCI
Circuit Breaker
No
Includes
Cord Retention Brackets, Mounting Hardware, Mounting Brackets
Metered
Non-Metered
Phase
Single
Mounting Style
Vertical Rackmount/0U
Max. Amps
20A
GFCI Protected
No
Voltage
120V
Receptacle Type
NEMA 5-20R
Outlet Surge Protection
No
Plug Type
NEMA L5-20P
Housing Material
Steel and Plastic
Power Indicator
No
Number of Outlets
24
NEMA Plug Configuration
NEMA L5-20P
NEMA Receptacle Configuration
NEMA 5-20R
Hz
50/60 Hz
Frequency
50/60 Hz
Mount Type
Rack-mountable
Input Voltage
120 V AC
Certifications & Standards
cUL Listed, UL 60950, UL Listed
PDU Type
Basic
Compatibility
Cord Retention Bracket
Output Voltage
120 V AC
Power Rating (VA)
1920 VA
Package Contents
Basic Rack 1.92kVA PDU , Cord retention bracket(s), Installation guide, Rack mounting brackets, Toolless mounting kit, User manual
Receptacle Detail
24 x NEMA 5-20R
Minimum Operating Temperature
23 Degrees F
Built-In Circuit Breaker
No
Maximum Current
20 A
Maximum Output Voltage
120V AC
Maximum Input Voltage
120V AC
Maximum Operating Temperature
113 Degrees F

Description

Power Distribution Unit, Built-In Circuit Breaker No, Color Black, Cord Length 10 ft, Number of Outlets 24, Receptacle Type NEMA 5-20R, Maximum Input Voltage 120V AC, Outlet Surge Protection No, Metered Non-Metered, Rack Units Not Applicable, Mounting Location Vertical Rack, Plug Type NEMA L5-20P, Housing Material Plastic, Includes Cord Retention Brackets, Mounting Hardware, Mounting Brackets, Manufacturers Warranty Length 2 yr, Maximum Current 20 A, Maximum Operating Temperature 113 Degrees F
