Shop APC

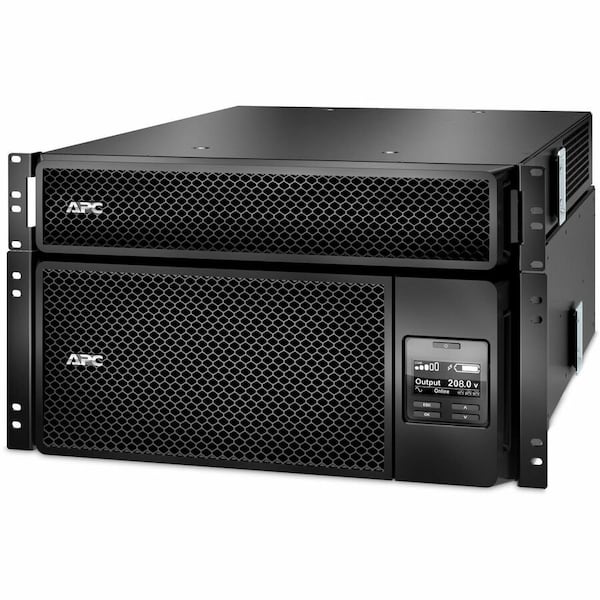

UPS System, 6000, Online Double Conversion, Out: 120 V In: 208 V

  • Mfr # SRT6KRMXLT5KTF

  • Zoro # G5371200

product price:
$
7,761.99
/ea
Additional $300.00 delivery surcharge applies per item.
See details

Key Features

UPS Type
Online Double Conversion
Power Rating
6000
Mounting
Rack
Wattage
6 kW
Input Voltage
208 V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SRT6KRMXLT5KTF
Zoro #
G5371200
UPC #
-
Country of Origin
Philippines

Dimensions

Depth
28 in
Height
10 in
Width
17 in
Cord Length
No Cord
Overall Height
10.3 in
Overall Width
17 in
Overall Depth
28.31 in

Details

Item
UPS System
UPS Type
Online Double Conversion
Power Rating
6000
Mounting
Rack
Wattage
6 kW
Input Voltage
208 V
Output Voltage
120 V
Backup Time (Half/Full Load)
8.3 min/2.3 min
Outlet Type
Hardwired
Medical Grade
Not Medical Grade Approved
Number of Outlets
12
Fax/Modem Line Protection
No
VA Rating - UPS Systems
6.0 kVA
NEMA Receptacle Configuration
(1) Hardwire 3-Wire (2PH + G), (12) 5-20R, (2) L6-20R, (2) L6-30R
Outlet Type - UPS Systems
Hardwired
Phase
Single
Ports
EPO, RJ45 10/100Base-T, RJ45 Serial, Smart Slot
Transfer Time
0 msec
Mounting - UPS Systems
Rack/Tower
Output Voltage - UPS Systems
120V AC, 208V AC, 240V AC
Includes
Rail Kit
Watts - UPS Systems
6.0 kW
Standards
RoHS/REACH
Automatic Volts Regulation
No
Green Certification or Other Recognition
ENERGY STAR(R) Certified
Input Voltage - UPS Systems
208V AC, 240V AC
Hz
40 to 70 Hz
Display Type
LCD
Input Current
33 A
Housing Color
Black
Battery Type
Lead Acid
Backup/Run Time (Full Load)
2 Minute
Capacity - Batteries
6000 VA/6000 W
Housing Material
Steel
Operating Temperature - Maximum
104 Degrees F
Run Time - Half Load
8.27 min
Automatic Voltage Regulation
No Automatic Voltage Regulation
Battery Chemistry
Valve Regulated Lead Acid
Surge Suppression Rating
480 J
Number of Outlets - UPS
14
External Battery Pack Part Number
SRT192RMBP
Run Time - Full Load
2.28 min
Replacement Battery Part Number
APCRBC140
External Battery Compatible
External Battery Pack Compatible
Frequency
50/60 Hz
Power Rating - Real
6 kW
Manufacturer Warranty
3 yr
Plug Configuration
Hardwired
Battery Recharge Time
1.5 hr
Power Rating - Apparent
6 kVA
Audible Alarm Conditions
Low Battery
Includes Battery
Battery Included
Operating Temperature - Minimum
32 Degrees F
Output Ports Included
EPO, Smart Slot
Receptacle Configuration
5-20R, L6-20R, L6-30R
Transfer Time - Maximum
0 msec
Input Current - Maximum
33 A
Data Line Protection
Includes Data Line Surge Protection
Visible Indicator Light Conditions
Battery Low
Battery Life - Minimum
3 yr

Description

UPS System, Online Double Conversion, Power Rating 6 kVA, Wattage 6 kW, Input Voltage 208V AC, 240V AC, Output Voltage 120V AC, 208V AC, 240V AC, Backup Time (Half/Full Load) 8.3 min/2.3 min, Mounting Rack/Tower, Outlet Type Hardwired, Number of Outlets 12, Medical Grade Not Medical Grade Approved, NEMA Receptacle Configuration (1) Hardwire 3-Wire (2PH + G), (12) 5-20R, (2) L6-20R, (2) L6-30R, Automatic Volts Regulation No, Fax/Modem Line Protection No, Transfer Time 0 msec, Width 17 in
